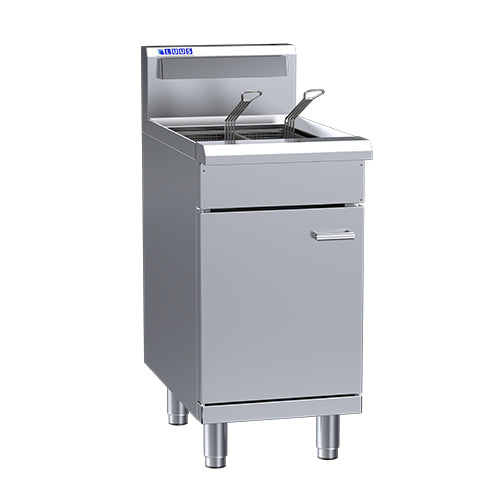

LUUS Professional 2 Basket Single V-Pan Fryer 450mm - FV-45

Deep Fryer

LUUS Professional 2 Basket Single V-Pan Fryer 450mm - FV-45   • Easy to clean V-pan design with cool zone• High performance burners and recovery rates• Includes pilot, FFD, piezo and high temp cutout• 30kg/h production rate• 20 litre oil...

$4,170.04
$4,587.04 inc gst
rent-try-buy
4,170.04 ex GST /Wk*
Based on 12mth Contract
  • Category : All, Commercial Cooking Equipment, Fast Shipping, Fryers and Griddles

LUUS Professional 2 Basket Single V-Pan Fryer 450mm - FV-45



• Easy to clean V-pan design with cool zone
• High performance burners and recovery rates
• Includes pilot, FFD, piezo and high temp cutout
• 30kg/h production rate
• 20 litre oil capacity
• Cabinet design with internal fryer controls
• Supplied with 2 fryer baskets
• Modular Professional series design
• 24 month ‘Platinum Warranty’
• Easy control/burner access for servicing



V-Pan Fryer


• 100MJ/h jet burner with pilot, FFD and piezo ignition
• Mechanically controlled thermostat
• Thermostat temperature range 100 - 200° C
• High temperature cut-out safety mechanism
• 1.5mm stainless steel tank
• 20 litre tank capacity
• Includes 2 stainless steel fryer baskets
• 0.9mm stainless steel perforated fish/base plate
• Tank drainage valve at bottom front of unit


Overall Construction


• Heavy duty construction
• Constructed 0.9mm stainless steel door
• High density Fiberfrax Durablanket insulation around tank
• Welded 1.2mm stainless steel front hob
• Front and side panels 0.9mm stainless steel
• Splashback 1.2 mm stainless steel
• Includes stainless steel legs with 55mm adjustable range


Dimensions


• 450mm x 800mm x 1100mm H
• Working height 900mm
• Weight 72kg
• Packed dimensions 640mm x 860mm x 1260mm H
• Packed weight 92kg


Connections


• Gas 3/4” BSP male
• Gas 225mm from right, 50mm from rear, 210mm from floor
• In-built gas regulator (specify Nat or LP on order)
• Drain 1 1/4” BSP male
• Drain 225mm from left, 70mm from front, 385mm floor


Cleaning & Servicing


• Easy access to all parts & components from front
• V-pan easy-to-clean design
• Rear basket support bar
• Removable baskets and inserts
