FSV series fryers feature an easy to clean stainless steel split “V-pan” tank with a large cool zone. Premium components such as Fenwal thermostats improve accuracy and reliability, while efficient multi-jet burners optimise performance and recovery rates.
- Saves space and eliminates cross-contamination
- Fenwal thermostat with +/- 1°C tolerance
- Large ‘cool zone’ prolongs oil life
- FFD and high temp cut-out safety features
- 24 month ‘Platinum Warranty’
- Easy control/burner access for servicing

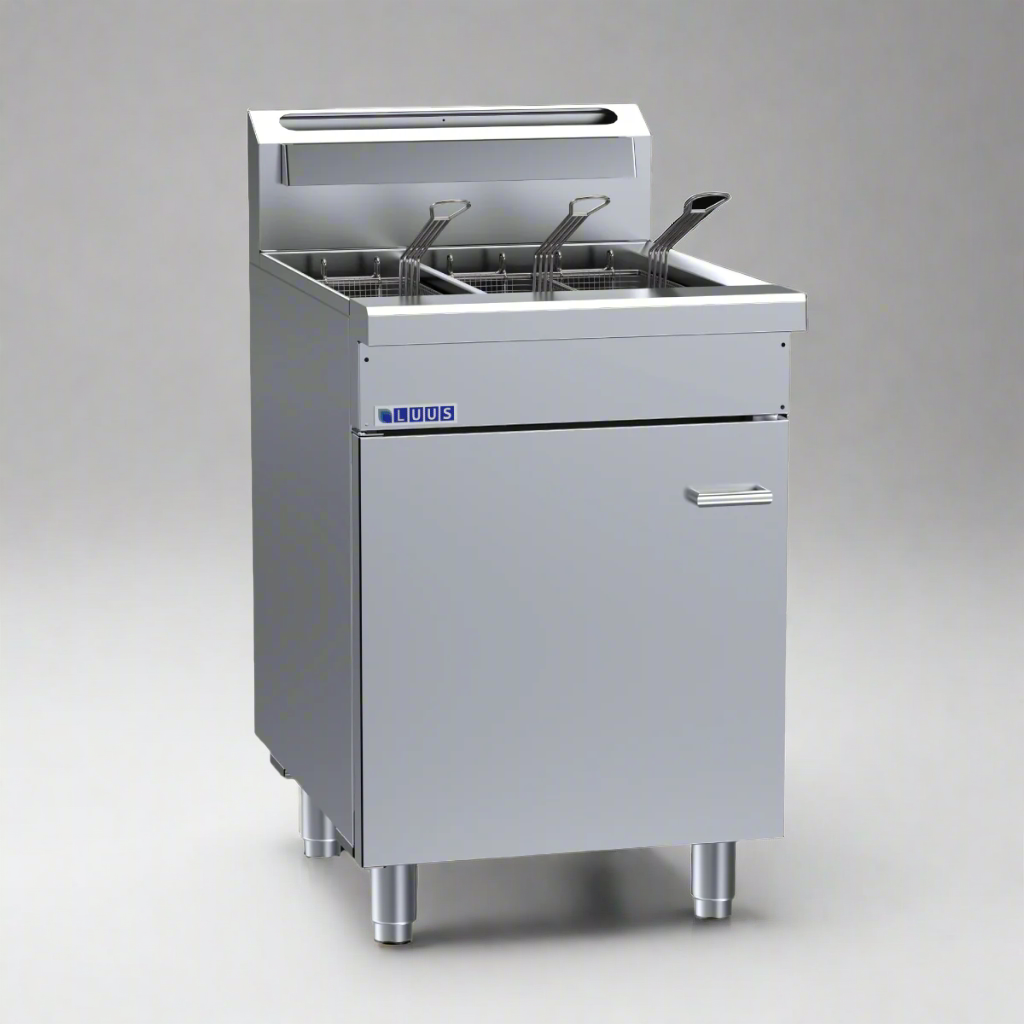

V-Pan Fryer
- 50MJ/h + 85MJ/h jet burners with pilot, FFD and piezo ignition
- Mechanically controlled thermostat
- Thermostat temperature range 100 - 200° C
- High temperature cut-out safety mechanism
- 1.5mm stainless steel stud weld efficient tank design
- 11 + 17.5 litre fry pot capacity
- Includes 3 stainless steel fryer baskets
- 0.9mm stainless steel perforated fish/base plate
- Tank drainage valves at bottom front of unit
Overall Construction
- Heavy duty construction
- 0.9mm stainless steel double-skinned door
- High density Fiberfrax Durablanket insulation around tank
- Welded 1.2mm stainless steel front hob
- Front panels 0.9mm stainless steel
- Side panels 1.2mm stainless steel
- Splashback 1.2 mm stainless steel
- Includes stainless steel legs with 55mm adjustable range
Dimensions
- 600mm x 800mm x 1100mm H
- Working height 900mm
- Weight 110kg
- Packed dimensions 640mm x 860mm x 1260mm H
- Packed weight 130kg
Connections
- Gas 3/4” BSP male
- Gas 385mm from right, 55mm from rear, 165mm from floor
- In-built gas regulator (specify Nat or LP on order)
- Drains 1 1/4” BSP male, 170mm from left and 325mm from right,
- 200mm from front, 415mm from floor
Cleaning & Servicing
- Easy access to all parts & components from front
- Open pot easy-to-clean design
- Rear basket support bar
- Removable baskets and inserts
