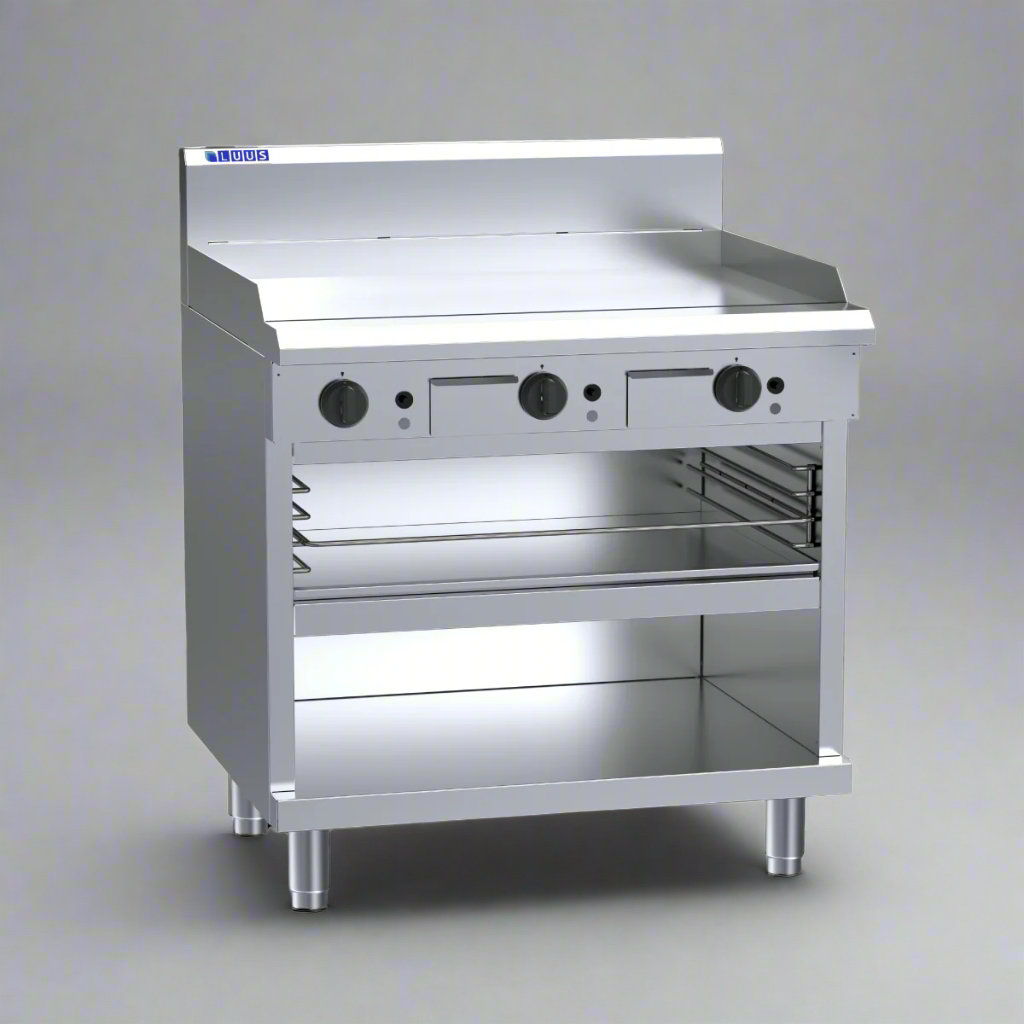

LUUS Professional Griddle Toaster 900mm - GTS-9
Cleverly positioned heat deflectors use radiant heat from the griddle plate to create perfect toasting environment. The compact 800mm deep design is a great space saving option for those that don’t have room for a separate griddle and salamander. Available in 600mm and 900mm wide models.
24 month ‘Platinum Warranty
Griddle/Hotplate
• 23 mj S/S burners with pilot, FFD and piezo ignition
• Variable flame control valve with low flame setting
• 16mm thick mild steel griddle plate
• Top weld sealed hotplate sections
• GTS-9 plate: 890mm x 540mm; 0.48m2 cooking area
• 2mm 304 stainless steel splash guards
• Incorporated waste channel at front of plate
• Griddle drawer oil bin 1.2mm stainless steel
Toaster
• Stainless steel reflectors directing heat to toasting zone
• Multiple (4) toasting rack positions
• Toasting rack 740mm x 385mm
• Stainless steel crumb catcher attached to rack
• Optimal toasting results with burner on ‘high’ setting
• Lower flame settings ideal for melts/warming
• 2mm 304 stainless steel splash guards
• Secondary crumb tray at base of toaster
Overall Construction
• Heavy duty construction
• Welded 1.2mm 304 stainless steel front hob
• Front and side panels 0.9mm 304 stainless steel
• Splashback 1.2 mm 304 stainless steel
• Stainless steel legs with 55mm height adjustment range
• Modular Professional series design
Dimensions
• 900mm x 800mm x 1100mm H
• Working height 900mm
• Weight 142kg
• Packed dimensions 940mm x 860mm x 1260mm H
• Packed weight 167kg
Connections
• Gas 3/4” BSP male
• 180mm from right, 50mm from rear, 150mm from floor
• Supplied with Natural gas regulator
Cleaning & Servicing
• Easy access to all parts & components from front
• Removable toaster rack tray, catcher, and supports
