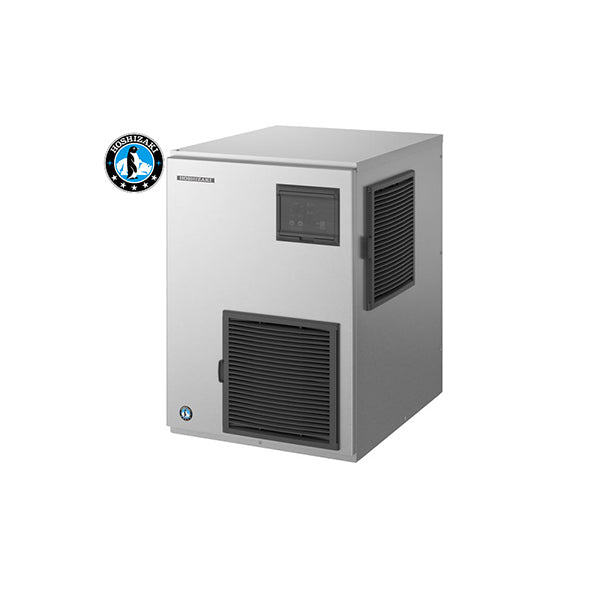

HOSHIZAKI 425KG FLAKE ICE MAKER - FM-480AKE
PURE & COOL ICE MAKER MACHINE
Hoshizaki’s Flake ice makers produce flakes consisting of 70%ice and 30% water, used primarily for cooling purposes. It is even used in large facilities such as healthcare, catering, supermarket chains or even cocktail bars. Hoshizaki’s Ice Makers are the Best Cocktail & Bar Ice Machines selling in Australia.
Required Water Filter Kit when purchasing this Ice Maker:
Water Filter Kit 250 - 81000116-87000123 (Sold Separately)
NOTE: Additional imaged published shows the Hoshizaki Storage Ice Bin B-301 SA - SOLD SEPARATELY
Features
- "Freeze Burn” is no longer an issue when displaying fresh fish or produce.
- Carbon auger bearings have a longer life expectancy than roller bearing, reducing maintenance costs.
- Automatic flush function, helps keep the ice making system clean.
- Controller board with Operational Status display assists in troubleshooting.
- Due to the auger system, water consumption is equal to ice production.
- Can be converted to nugget ice by changing the extruding head and cutter (parts at an additional cost).
- Warranty: 2 year parts & labour on entire unit, 5 year (parts only) on compressor & air cooled condenser coil.
Technical Specifications
- Width Depth Height: 560mm x 700mm x 780mm
- Weight Net - 95kg
- AC Supply Voltage: 1 PHASE 230 50Hz / 10 AMP Plug
- Amperage: Running: 8.4A, Starting: 43A
- Refrigerant Charge: R404A
Operating Conditions:
- Ambient Temp.: 5-40°C
- Water Supply Temp.: 5-35°C
- Water Supply Pressure: 0.05-0.8MPa (0.5-8bar)
- Voltage Range: Rated Voltage ±10%
For more information: To view ice sizes, water inlet/drainage diagram, etc., please download the spec sheet available in the "Downloads" Tab.
