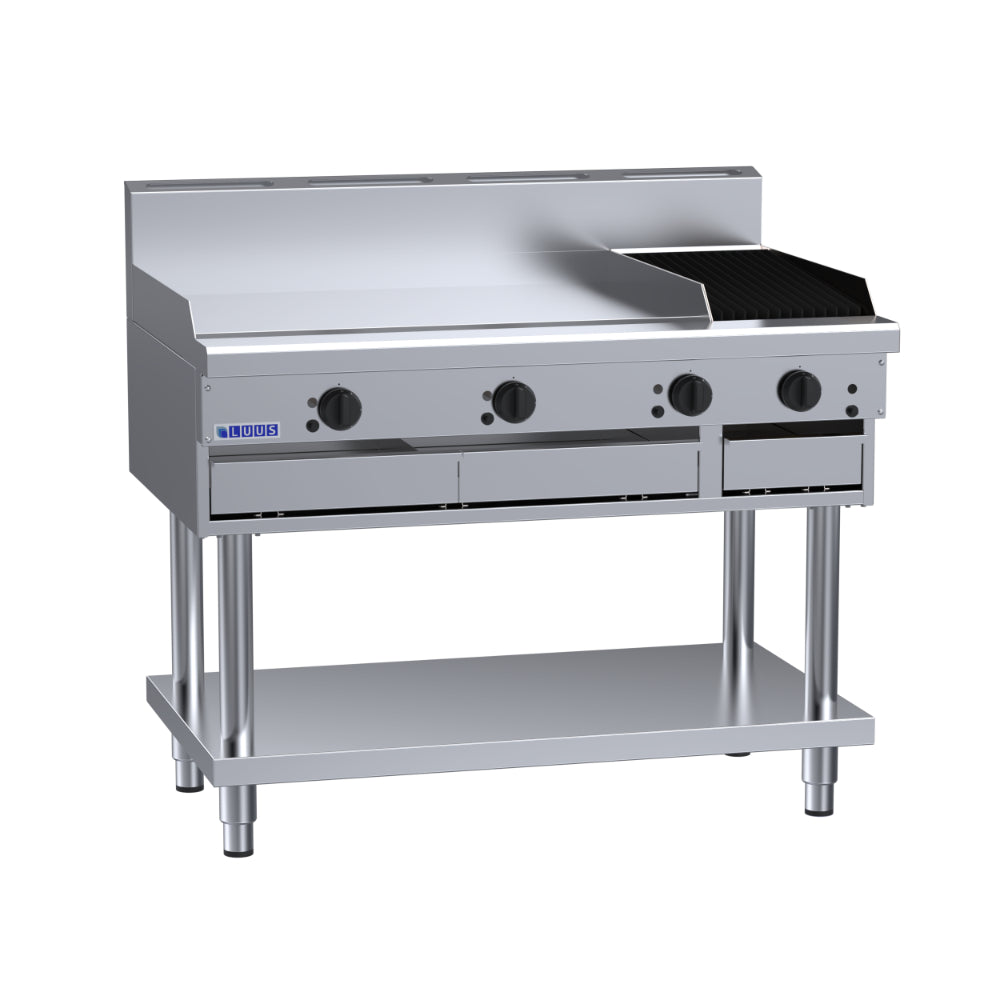

LUUS 900mm Griddle 300mm Chargrill - CS-9P3C

The LUUS CS-9P3C is a gas griddle with a 1200 mm-wide format. Its hotplate format provides a dedicated surface for griddle cooking within the kitchen's equipment layout.

The CS-9P3C 300mm chargrill plus 900mm griddle plate combination ensures ample heat from the burners is spread evenly across the 21mm thick mild steel surface, all within a compact 800mm deep unit. Available as a benchtop or freestanding with an undershelf storage area.

Product Features

• 900mm Griddle 300mm Chargrill
• Professional series
• 900mm Griddle 300mm Chargrill Combination with legs & shelf
• Griddle/Hotplate
• 18 mj burners with pilot, FFD and piezo ignition
• Variable flame control valve with low flame setting
• 21mm thick mild steel griddle plate
• Top weld sealed hotplate sections
• CS-9P3C plate: 890mm x 540mm; 0.48m2 cooking area
• 2mm 304 stainless steel splash guards
• Griddle oil bin 1.2mm stainless steel

Chargrill/Barbecue

• 33 mj burners with pilot, FFD and piezo ignition
• Variable flame control valve with low flame setting
• Two piece burner with cast-iron heat distributing hood
• Optional ceramic rocks for even heat and smokiness
• Optional cast iron ceramic rock tray
• Heavy duty cast iron ‘diamond’ grates 147mm x 540mm
• CS-9P3C bbq: 280mm x 520mm; 0.15m2 cooking area
• 2mm 304 stainless steel splash guards
• Chargrill undertray 0.9mm stainless steel

Overall Construction

• Heavy duty construction
• Welded 1.2mm 304 stainless steel front hob
• Front and side panels 0.9mm 304 stainless steel
• Splashback 1.2 mm 304 stainless steel
• Stainless steel legs with 55mm height adjustment range

Cleaning & Servicing

• Easy access to all parts & components from front

Optional accessories

Optional items are not included unless specified in your order.

• Rear castors
• Joining caps
• Ribbed or chrome finish on hotplates
• RH and LH side shields
• Ceramic rocks (specify when ordering)
• Benchtop mount (specify when ordering

Specifications
