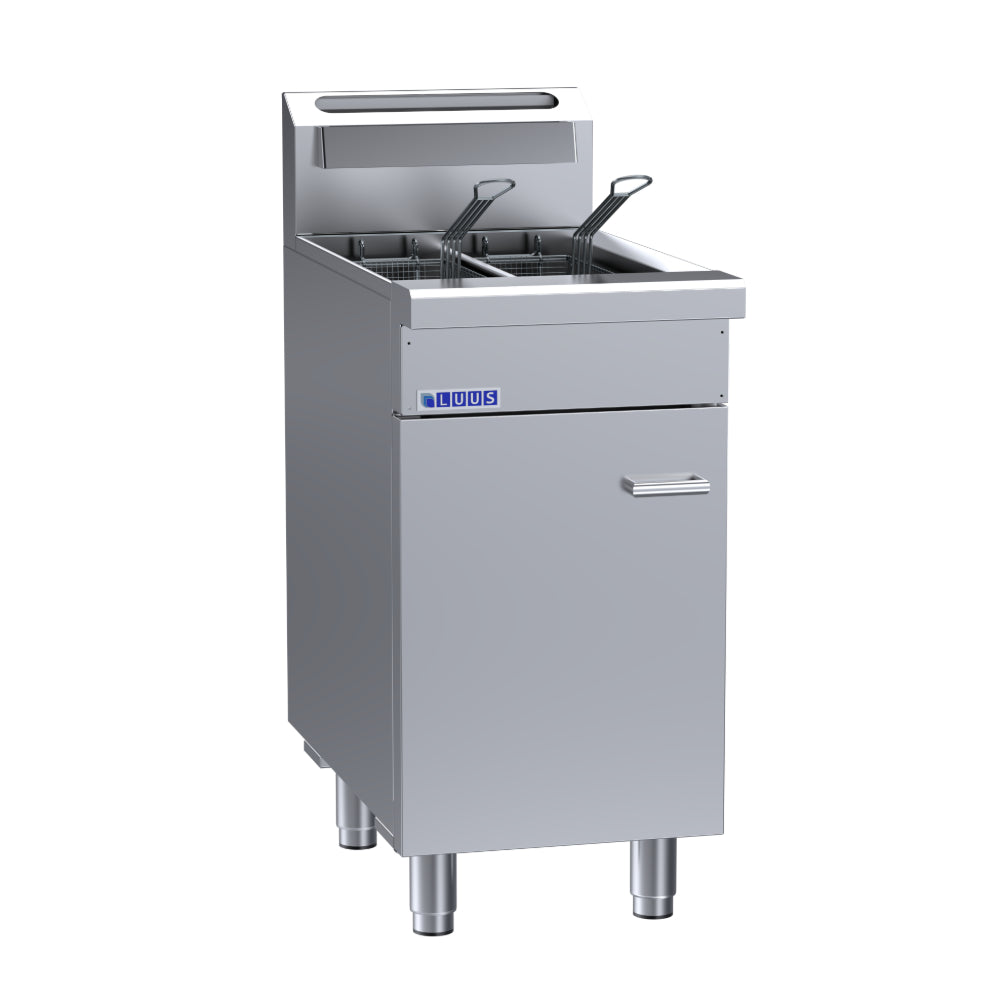

The LUUS FSV-45 is a gas fryer with a 450 mm-wide format. It provides a dedicated deep-frying station, with the model's pan configuration and electrical or gas requirements listed below.
The Luus FSV-45 2 basket split pan fryer saves space and eliminates cross contamination with it's unique design. Features an easy to clean stainless steel “V-pan” tank with a large cool zone to prolong the life of your oil.
Product Features
- 2 Basket Split V-Pan Fryer
- Professional series
- Split Pan Fryer
- 2 x 50MJ/h jet burners with pilot, FFD and piezo ignition
- Mechanically controlled thermostat
- Thermostat temperature range 100 - 200° C
- High temperature cut-out safety mechanism
- 1.5mm stainless steel stud weld efficient tank design
- 2 x 11.5 litre fry pot capacity
- Includes 2 stainless steel fryer baskets
- 0.9mm stainless steel perforated fish/base plate
- Tank drainage valves at bottom front of unit
Overall Construction
- Heavy duty construction
- 0.9mm 304 stainless steel double-skinned door
- High density Fiberfrax Durablanket insulation around tank
- Welded 1.2mm 304 stainless steel front hob
- Front panels 0.9mm 304 stainless steel
- Side panels 1.2mm 304 stainless steel
- Splashback 1.2 mm 304 stainless steel
- Includes stainless steel legs with 55mm adjustable range
Cleaning & Servicing
- Easy access to all parts & components from front
- Open pot easy-to-clean design
- Rear basket support bar
- Removable baskets and inserts
Optional accessories
Optional items are not included unless specified in your order.
- Additional fryer baskets
- Joining caps
- RH and LH side shields
- Rear castors
Specifications
| Model | FSV-45 |
|---|---|
| Dimensions (W × D × H) | 450 × 800 × 1100 mm |
| Unit weight | 72 kg |
| Natural gas input | 100 MJ/h |
| LPG input | 100 MJ/h |
| Packed dimensions (W × D × H) | 680 × 880 × 1245 mm |
| Packed weight | 112 kg |
| Warranty | 2 years via registration |
