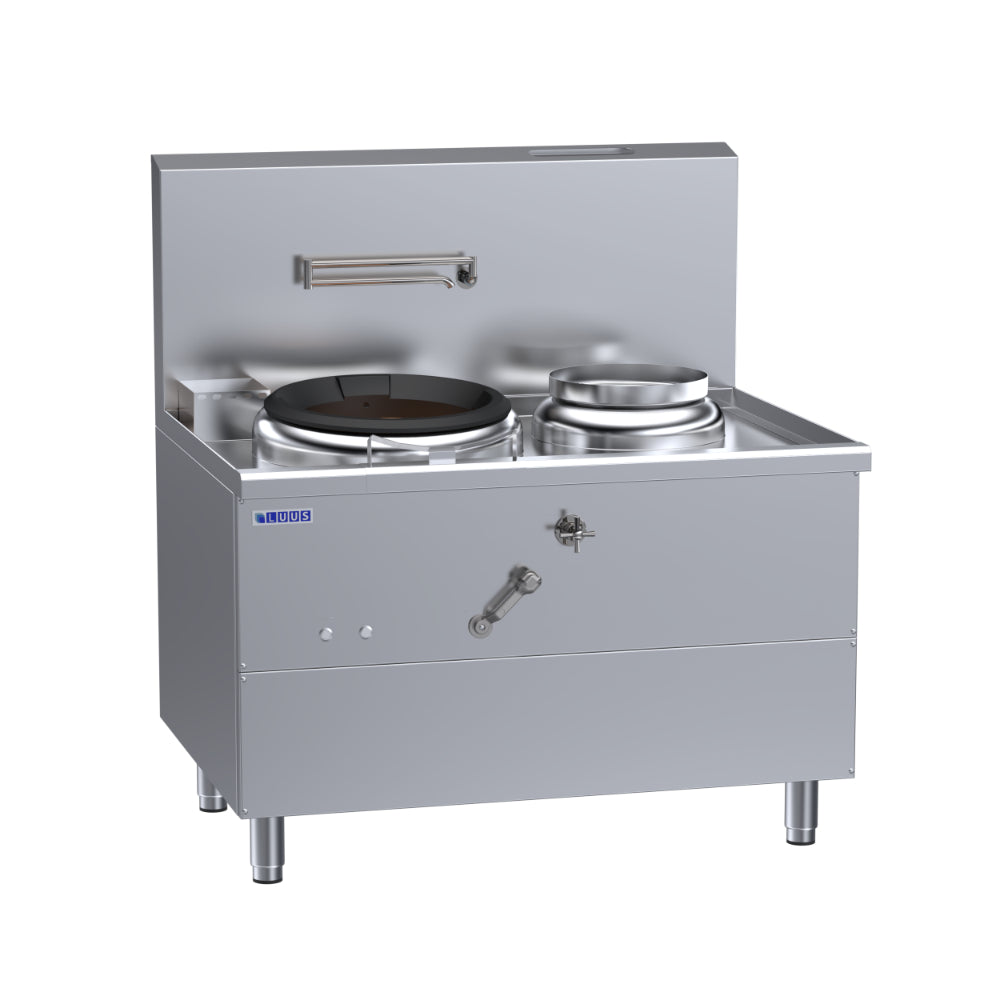

The LUUS WV-1A1P is a gas wok cooker with a 1200 mm-wide format. It provides a dedicated wok-cooking station, with the burner or induction configuration specified for this model.
Inspired by the fast-paced kitchens of Hong Kong, 'Fo San' is cantonese for volcano, representing the raw heat and power generated by the unique burner set-up. The WV-1P1A single hole wok comes with a fan forced stainless steel 145MJ air-blast burner and LHS pot, electronic ignition, external pilot, rear flue system and pre-cast fire-brick combustion chamber.
Product Features
- 1 Air-Blast Burner & 1 RHS Pot Fo San Wok
- Asian series
- 1 Air-Blast Burner & 1 RHS Pot Fo San Wok with fan, electronic ignition
- 145 mj Air-Blast Burner with 3 mj pilot & FFD standard
- Electronic auto-ignition switch and burner reset function
- Fan-forced stainless steel burner easy-to-clean design
- External pilot position most effective at avoiding blockages
- Fire-brick lined combustion chamber and ceramic base
- Rear flue system provides effective & efficient combustion
- Quarter turn water control lever
- Folding rear laundry arm with front panel controls
- Front gutter design for easier cleaning
- Internal front heat shield panel
- Supplied with waste strainer
- Zinc-aluminium Alloy burner handles
- Ergonomically designed burner handle can be repositioned
- at 45˚ orientations to match personal preference
Overall Construction
- Heavy duty construction
- Robust, full skirt, 355mm cast-iron ring
- 1.5mm 304 stainless steel top deck
- Splashback 1.2 mm 304 stainless steell
- Front cover and hob 1.2mm 304 stainless steel
- Side panels 0.9mm 304 stainless steel
- Stainless steel removable legs
- 55mm height adjustment range
- 1.5mm 304 stainless steel base panel
- One-piece hob and deck
Cleaning & Servicing
- Front gutter design and waste strainer for easier cleaning
- Top surface and skirting is easy to clean from above
- Burner removable and accessible from above
- Burner injector, electrode and flame probe accessible
- Control box accessible via lower front cover
- Drain and tap accessible by removing upper front cover
- Gas train, air-line, fan and burner accessible by removing
- front covers
Optional accessories
Optional items are not included unless specified in your order.
- Lowered splashback to 1100mm overall height
- 250mm wide clip on shelves (front)
- Joining caps & strips
- RH and LH side shields
- Rear castors
Specifications
| Model | WV-1A1P |
|---|---|
| Dimensions (W × D × H) | 1200 × 900 × 1300 mm |
| Unit weight | 230 kg |
| Electrical output | 0.12 kW |
| Voltage | 240 V |
| Current | 0.5 A |
| Phase | 1 |
| Natural gas input | 145 MJ/h |
| LPG input | 145 MJ/h |
| Packed dimensions (W × D × H) | 1250 × 950 × 1470 mm |
| Packed weight | 250 kg |
| Warranty | 2 years via registration |
