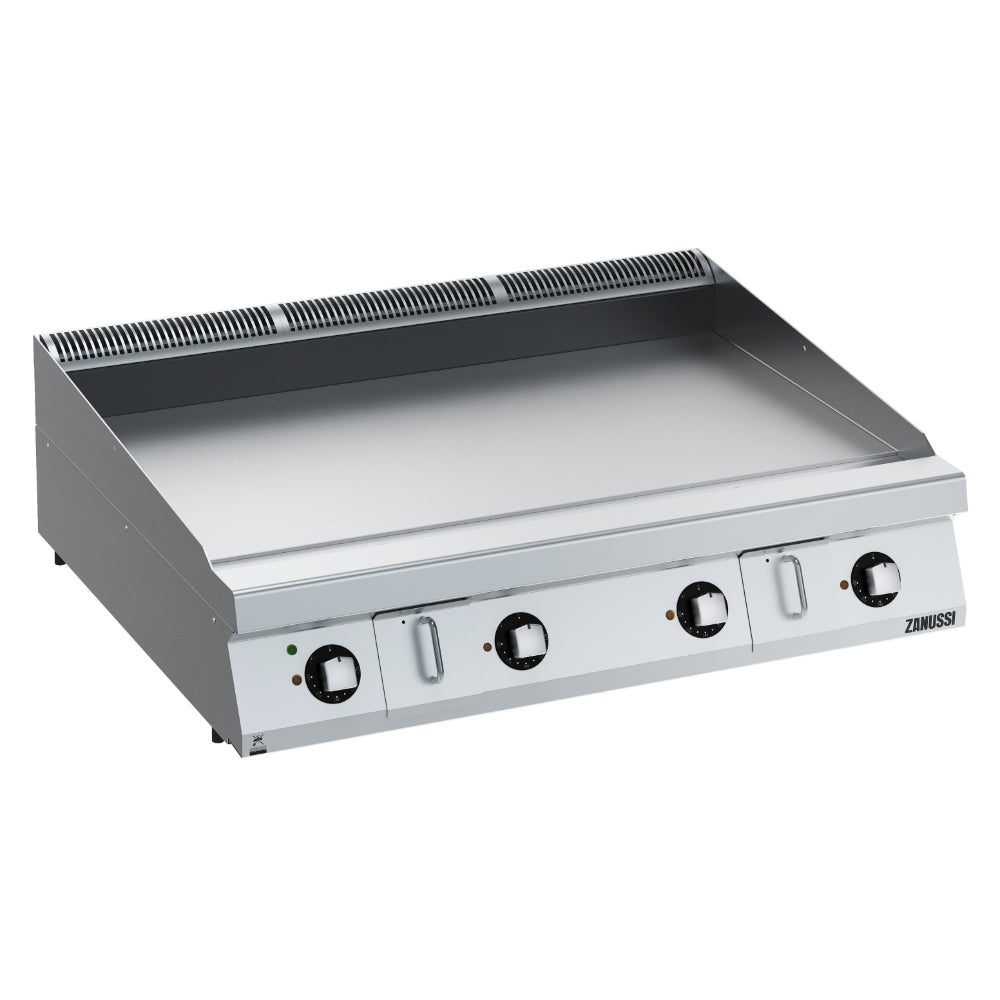

The Zanussi 392404 is an electric griddle with a 1200 mm-wide format. Its hotplate format provides a dedicated surface for griddle cooking within the kitchen's equipment layout.
With dimensions of 1200 × 900 × 250 mm (W × D × H), this model can be assessed against the space available in your kitchen. Its specified electrical load is 20 kW with a 3-phase plus neutral supply.
Product Features
- Electric 1200mm Smooth Chromium Plate Fry Top - HP
- EVO 900 series
- IPX5 water protection.
- Safety thermostat and thermostatic control.
- Stainless steel high splash guards on the rear and sides of cooking surface.
- The special design of the control knob system guarantees against water infiltration.
- Unit to be mounted on open base cupboards, bridging supports or cantilever systems.
- Two large drain holes on cooking surface permits the draining of fat into two separate 3 liter collectors placed under the cooking surface.
- Infrared heating elements mounted below the cooking surface.
- Units have 4 independent controls to regulate temperature of the cooking surface.
- Temperature range from 120° up to 280°C.
- Suitable for countertop installation.
- Cooking surface to be completely smooth.
- Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.
- AISI 304 stainless steel worktop, 2mm thick.
- All exterior panels in Stainless Steel with Scotch Brite finishing.
- Unit is 900mm deep to give a larger working surface area.
- Non-scratch cooking surface 20mm thick for optimum grilling results and ease of use.
Specifications
| Model | 392404 |
|---|---|
| Dimensions (W × D × H) | 1200 × 900 × 250 mm |
| Unit weight | 170 kg |
| Electrical output | 20 kW |
| Current | 28.9 A |
| Phase | 3N |
| Packed dimensions (W × D × H) | 1300 × 1040 × 540 mm |
| Packed weight | 170 kg |
| Warranty | 2 years via registration |
