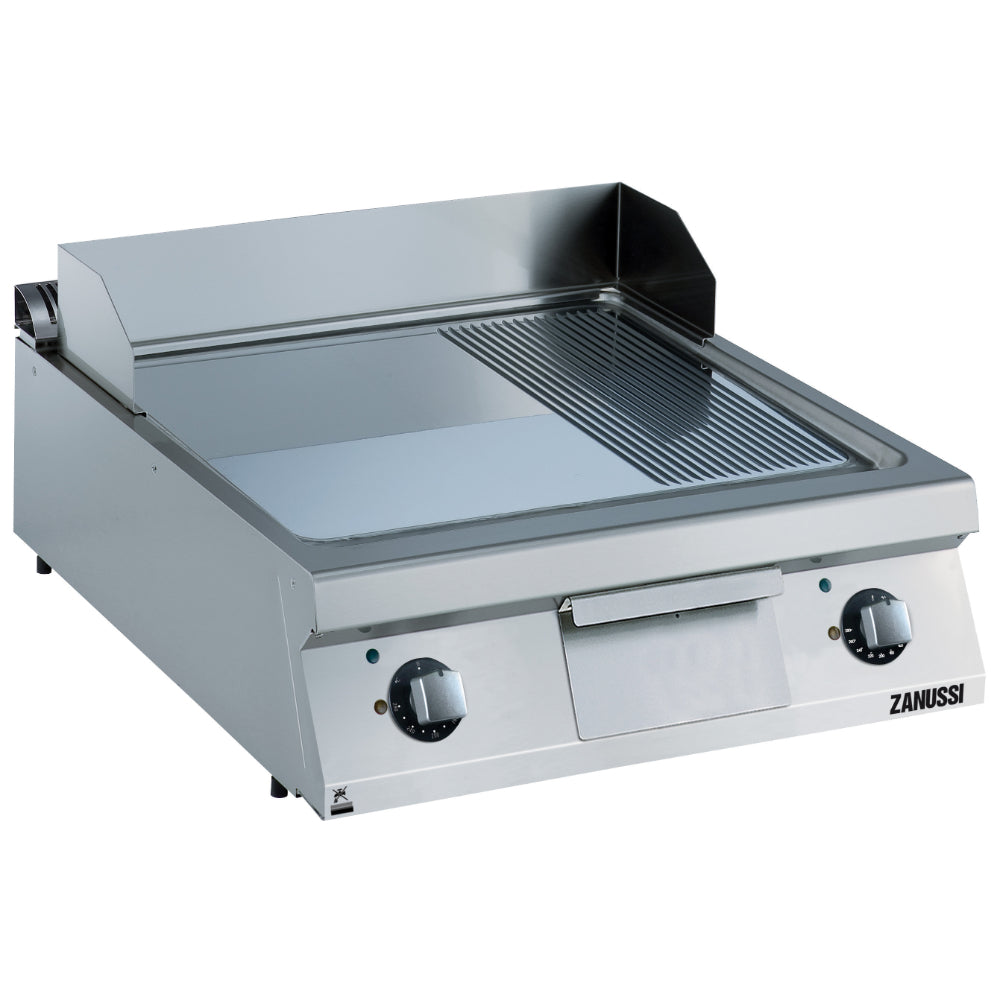

Zanussi Electric 800mm 2/3 Smooth 1/3 Ribbed Polished Chrome Sloped Plate Fry Top - 392074

The Zanussi 392074 is an electric griddle with a 800 mm-wide format. Its hotplate format provides a dedicated surface for griddle cooking within the kitchen's equipment layout.

With dimensions of 800 × 900 × 250 mm (W × D × H), this model can be assessed against the space available in your kitchen. Its specified electrical load is 15 kW with a 3-phase plus neutral supply.

Product Features

• Electric 800mm 2/3 Smooth 1/3 Ribbed Polished Chrome Sloped Plate Fry Top
• EVO 900 series
• Temperature range from 120° up to 280°C.
• Polished chromium surface avoids the mixing of flavors when passing from one type of food to another.
• Cooking surface 15mm thick polished chrome for optimum grilling results and ease of use.
• Suitable for countertop installation.
• Unit to be mounted on open base cupboards, bridging supports or cantilever systems.
• Large drain hole on cooking surface permits the draining of fat into large 1 liter collector placed under the cooking surface.
• Electric elements in incoloy positioned under the cooking plate.
• Safety thermostat and thermostatic control.
• Units have separate controls for each half module of the cooking surface.
• Stainless steel high splash guards on the rear and sides of cooking surface. Splash guards can be easily removed for cleaning and are dishwasher-safe.
• The special design of the control knob system guarantees against water infiltration.
• IPX5 water protection.
• Cooking surface to be 2/3 smooth and 1/3 ribbed.
• Unit is 900mm deep to give a larger working surface area.
• All exterior panels in Stainless Steel with Scotch Brite finishing.
• AISI 304 stainless steel worktop, 2mm thick.
• Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.
