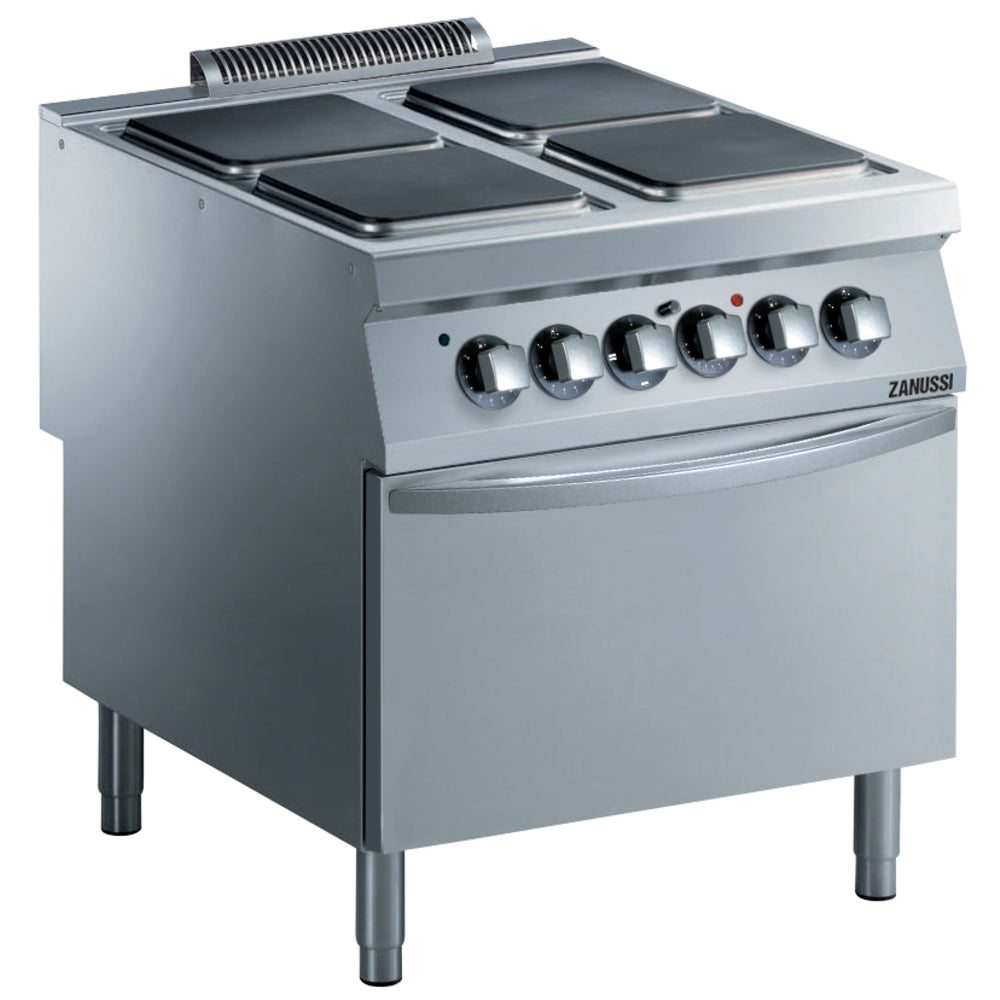

Zanussi Electric 800mm 4 Hot Square Plate Boiling Top with Electric Static Oven - 392041

The Zanussi 392041 is an oven range with a 800 mm-wide format. It combines a cooking surface and an oven in one unit, keeping both cooking functions within the same station.

With dimensions of 800 × 900 × 850 mm (W × D × H), this model can be assessed against the space available in your kitchen. Its specified electrical load is 22 kW with a 3-phase plus neutral supply.

Product Features

• Electric 800mm 4 Hot Square Plate Boiling Top with Electric Static Oven
• EVO 900 series
• Top configuration allows installation on ambient base only (not possible to install on refrigerated nor freezer base).
• Unit to be mounted on stainless steel feet with height adjustment up to 50 mm. Unit can be easily mounted on cantilever systems.
• The four 4kW electric cast-iron hot plates are hermetically sealed to the one piece top and are featured with safety thermostat.
• Base compartment consists of an electric standard oven with 40 mm thick oven door for heat insulation, positioned beneath the base plate.
• Oven chamber with 3 levels of runners to accomodate 2/1 GN shelves (2 steam pans).
• Ribbed cast iron oven base plate.
• Oven to feature separate thermostats for top and bottom elements. Thermostat temperature adjustable from 110°C to 285°C.
• The special design of the control knob system guarantees against water infiltration.
• IPX5 water protection.
• Unit is 900mm deep to give a larger working surface area.
• All exterior panels in Stainless Steel with Scotch Brite finishing.
• AISI 304 stainless steel worktop, 2mm thick.
• Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.
