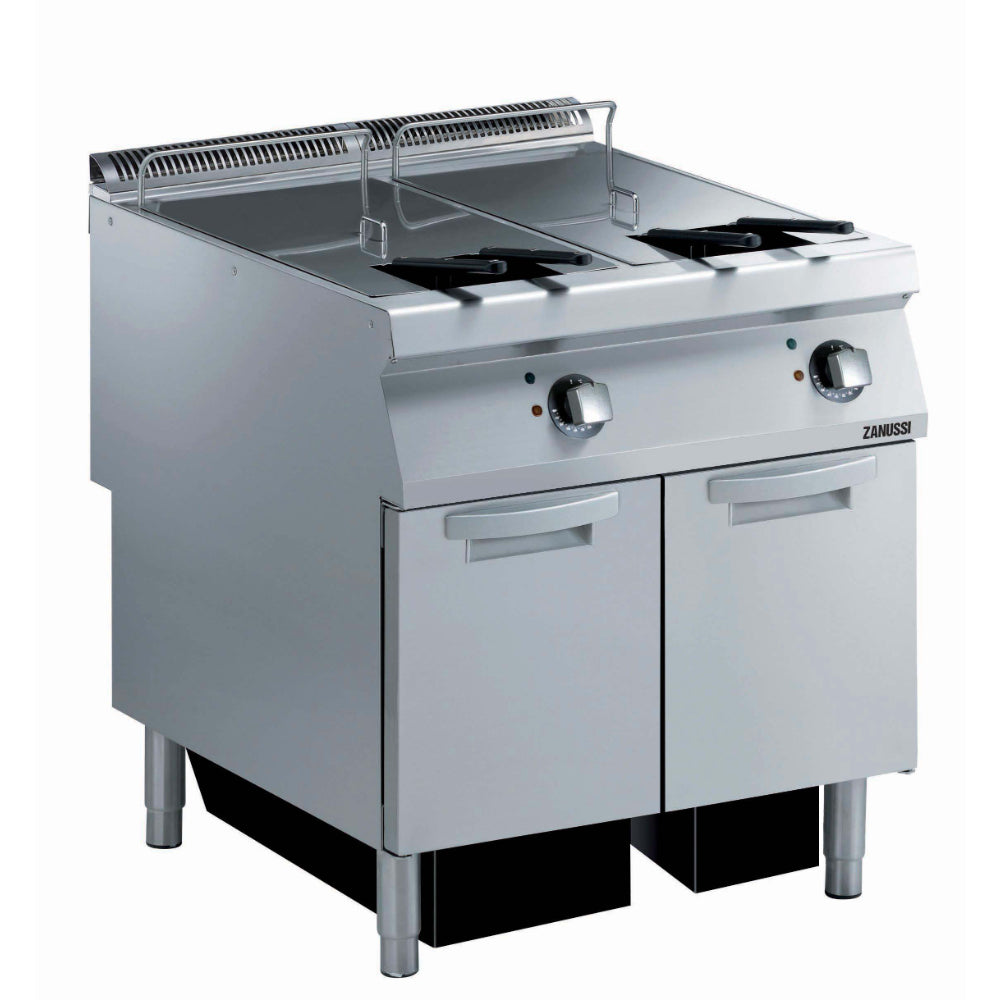

The Zanussi 392338 is an electric fryer with a 800 mm-wide format. It provides a dedicated deep-frying station, with the model's pan configuration and electrical or gas requirements listed below.
With dimensions of 800 × 900 × 850 mm (W × D × H), this model can be assessed against the space available in your kitchen. Its specified electrical load is 36 kW with a 3-phase plus neutral supply.
Product Features
- Electric 800mm Twin Well 2 x 23L Freestanding V-Shaped Deep Fryer
- EVO 900 series
- Thermostatic regulation of oil temperature up to a maximum of 185 °C.
- External infrared heating elements with innovative deflectors applied to the well for ease of cleaning of the internal well and safe operations.
- The special design of the control panel offers a better guarantee against oil infiltration.
- Optional portable oil quality monitoring tool (code 9B8081) for efficient oil management.
- Deep drawn V-Shaped wells.
- Interior of wells with seamlessly laser-welded corners for ease of cleaning.
- Overheat protection thermostat as standard on all units.
- All major compartments located in front of unit for ease of maintenance.
- IPX5 water resistance certification.
- Supplied as standard with 4 half size baskets and 1 right and left side doors for cupboard.
- Unit is 900mm deep to give a larger working surface area.
- Unit delivered with four 50 mm legs in stainless steel as standard.
- All exterior panels in Stainless Steel with Scotch Brite finishing.
- Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.
Specifications
| Model | 392338 |
|---|---|
| Dimensions (W × D × H) | 800 × 900 × 850 mm |
| Unit weight | 120 kg |
| Electrical output | 36 kW |
| Current | 52 A |
| Phase | 3N |
| Packed dimensions (W × D × H) | 860 × 1020 × 1080 mm |
| Packed weight | 120 kg |
| Warranty | 2 years via registration |
