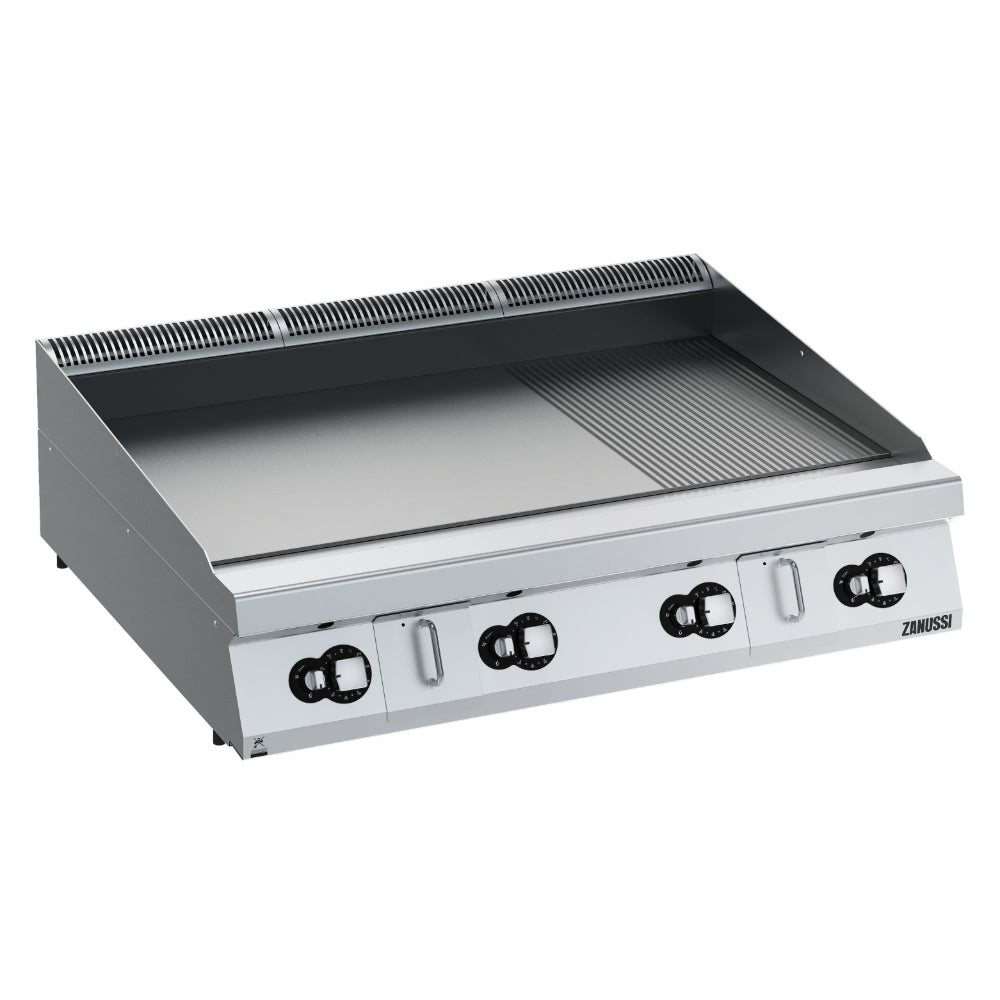

The Zanussi 392407 is a gas griddle with a 1200 mm-wide format. Its hotplate format provides a dedicated surface for griddle cooking within the kitchen's equipment layout.
With dimensions of 1200 × 930 × 250 mm (W × D × H), this model can be assessed against the space available in your kitchen. Check the required gas configuration and installation clearances when planning your equipment layout.
Product Features
- Gas 1200mm 2/3 Smooth 1/3 Ribbed Chromium Plate Fry Top - HP
- EVO 900 series
- Units have 4 independent controls to regulate temperature of the cooking surface.
- Scratch resistant cooking surface thanks to a special treatment of the chromium plate.
- Easy to clean and corrosion resistant chromium surface.
- Temperature range from 90° up to 270°C.
- Suitable for countertop installation.
- Unit to be mounted on open base cupboards, bridging supports or cantilever systems.
- Two large drain holes on cooking surface permits the draining of fat into two separate 3 liter collectors placed under the cooking surface.
- Stainless steel high splash guards on the rear and sides of cooking surface.
- Piezo spark ignition with thermostatic valve for added safety.
- The special design of the control knob system guarantees against water infiltration.
- IPX5 water protection.
- Cooking surface to be 2/3 smooth and 1/3 ribbed.
- Non-scratch cooking surface 20mm thick for optimum grilling results and ease of use.
- Unit is 930 mm deep to give a larger working surface area.
- All exterior panels in Stainless Steel with Scotch Brite finishing.
- AISI 304 stainless steel worktop, 2mm thick.
- Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.
Specifications
| Model | 392407 |
|---|---|
| Dimensions (W × D × H) | 1200 × 930 × 250 mm |
| Unit weight | 150 kg |
| Phase | N/A |
| Gas input | 119 MJ/h |
| Packed dimensions (W × D × H) | 1300 × 1040 × 540 mm |
| Packed weight | 170 kg |
| Warranty | 2 years via registration |
