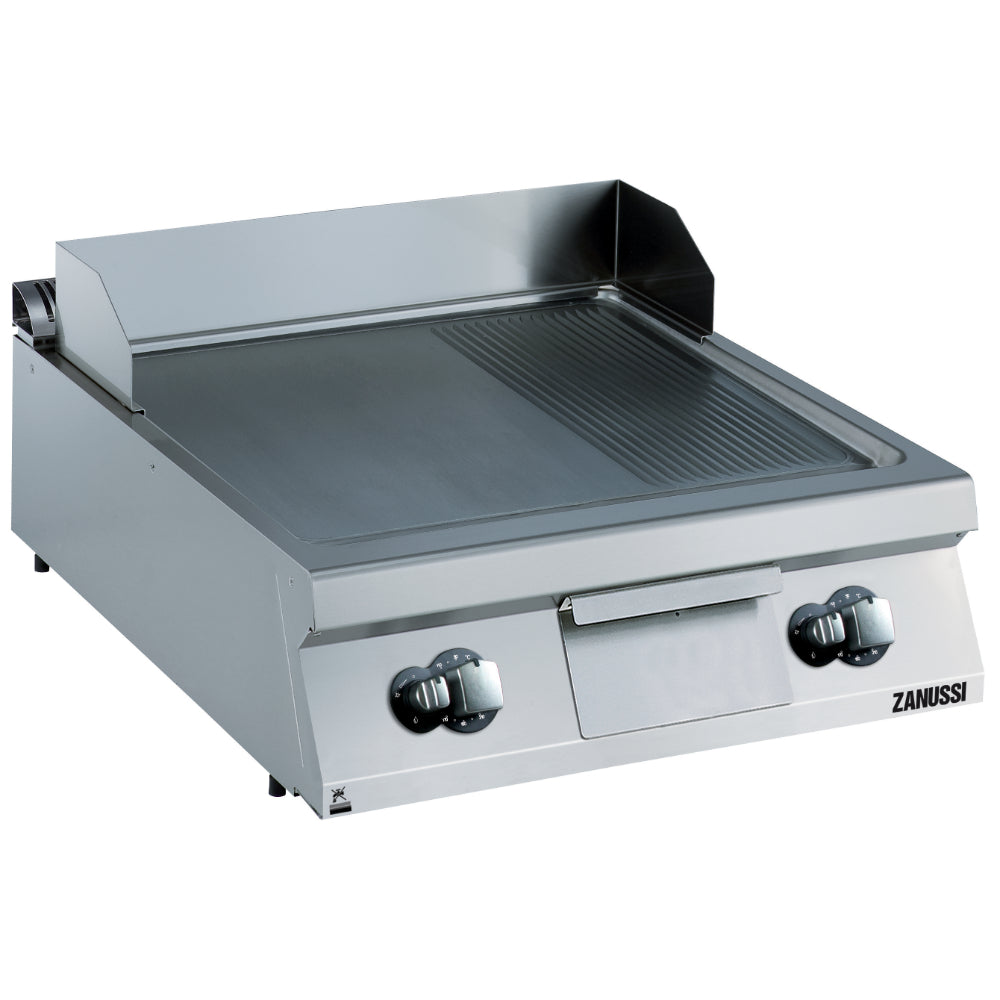

The Zanussi 392403 is a gas griddle with a 800 mm-wide format. Its hotplate format provides a dedicated surface for griddle cooking within the kitchen's equipment layout.
With dimensions of 800 × 900 × 250 mm (W × D × H), this model can be assessed against the space available in your kitchen. Check the required gas configuration and installation clearances when planning your equipment layout.
Product Features
- Gas 800mm 2/3 Smooth 1/3 Ribbed Brushed Chrome Horizontal Plate Fry Top
- EVO 900 series
- Temperature range from 90° up to 270°C.
- Rough brushed chrome surface is highly resistant to scratches and facilitates cleaning operations at the end of the day.
- Scrapers with smooth and ribbed blades included as standard.
- Suitable for countertop installation.
- Unit to be mounted on open base cupboards, bridging supports or cantilever systems.
- Large drain hole on cooking surface permits the draining of fat into large 1,5 liter collector placed under the cooking surface.
- Stainless steel high splash guards on the rear and sides of cooking surface. Splash guards can be easily removed for cleaning and are dishwasher-safe.
- Piezo spark ignition with thermostatic valve for added safety.
- Units have separate controls for each half module of the cooking surface.
- The special design of the control knob system guarantees against water infiltration.
- IPX5 water protection.
- Cooking surface to be 2/3 smooth and 1/3 ribbed.
- Unit is 900mm deep to give a larger working surface area.
- Cooking surface 15mm thick brushed chrome for optimum grilling results and ease of use.
- All exterior panels in Stainless Steel with Scotch Brite finishing.
- AISI 304 stainless steel worktop, 2mm thick.
- Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.
Specifications
| Model | 392403 |
|---|---|
| Dimensions (W × D × H) | 800 × 900 × 250 mm |
| Unit weight | 105 kg |
| Phase | N/A |
| Gas input | 72 MJ/h |
| Packed dimensions (W × D × H) | 860 × 1020 × 540 mm |
| Packed weight | 104 kg |
| Warranty | 2 years via registration |
