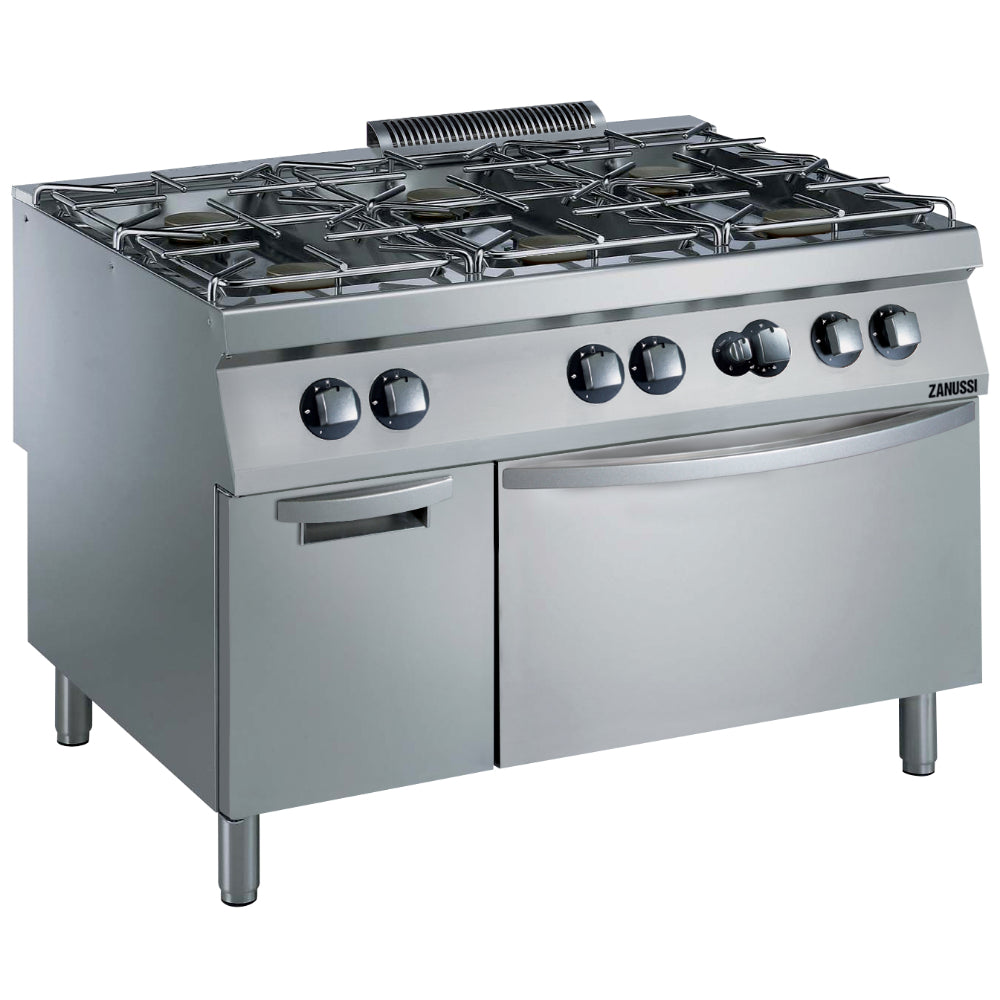

Zanussi Gas 1200mm 6 Open Burners 36 mj with Gas Static Oven + Cupboard - 392263

The Zanussi 392263 is an oven range with a 1200 mm-wide format. It combines a cooking surface and an oven in one unit, keeping both cooking functions within the same station.

With dimensions of 1200 × 900 × 850 mm (W × D × H), this model can be assessed against the space available in your kitchen. Check the required gas configuration and installation clearances when planning your equipment layout.

Product Features

• Gas 1200mm 6 Open Burners 36 mj with Gas Static Oven + Cupboard
• EVO 900 series
• Base compartment consists of a gas heated standard oven with stainless steel burners and self stabilizing flame positioned beneath the base plate. Oven chamber to have 3 levels of runners to accomodate 2/1 GN shelves (2 steam pans) and ribbed cast iron base plate.
• Cupboard compartment for storage of pots, pans, sheet pans etc.
• Flame failure device on each burner protects against gas leakage when accidental extinguishing of the flame occurs.
• Gas appliance supplied for use with natural or LPG gas, conversion jets supplied as standard.
• IPX5 water protection.
• Large sized pan support in cast iron (stainless steel as option) with long center fins to allow the use of the largest down to the smallest pans.
• Protected pilot light.
• The special design of the control knob system guarantees against water infiltration.
• Burners with optimized combustion.
• Unit to be mounted on stainless steel feet with height adjustment up to 50 mm. Unit can be easily mounted on cantilever systems.
• Oven thermostat adjustable from 120 °C to 280 °C.
• 40 mm thick oven door for heat insulation.
• The six 10 kW high efficiency burners are available in two different sizes to suit high performing cooking requirements of the most demanding customers.
• 60 mm burners with continuous power regulation from 1,5 to 6 kW
• 100 mm burners with continuous power regulation from 2.2 kW to 10 kW
• Control knobs provide smooth, continuous rotation from min to max power level.
• Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.
• AISI 304 stainless steel worktop, 2mm thick.
• All exterior panels in Stainless Steel with Scotch Brite finishing.
• Pan supports in stainless steel.
• Unit is 900mm deep to give a larger working surface area.

Specifications
