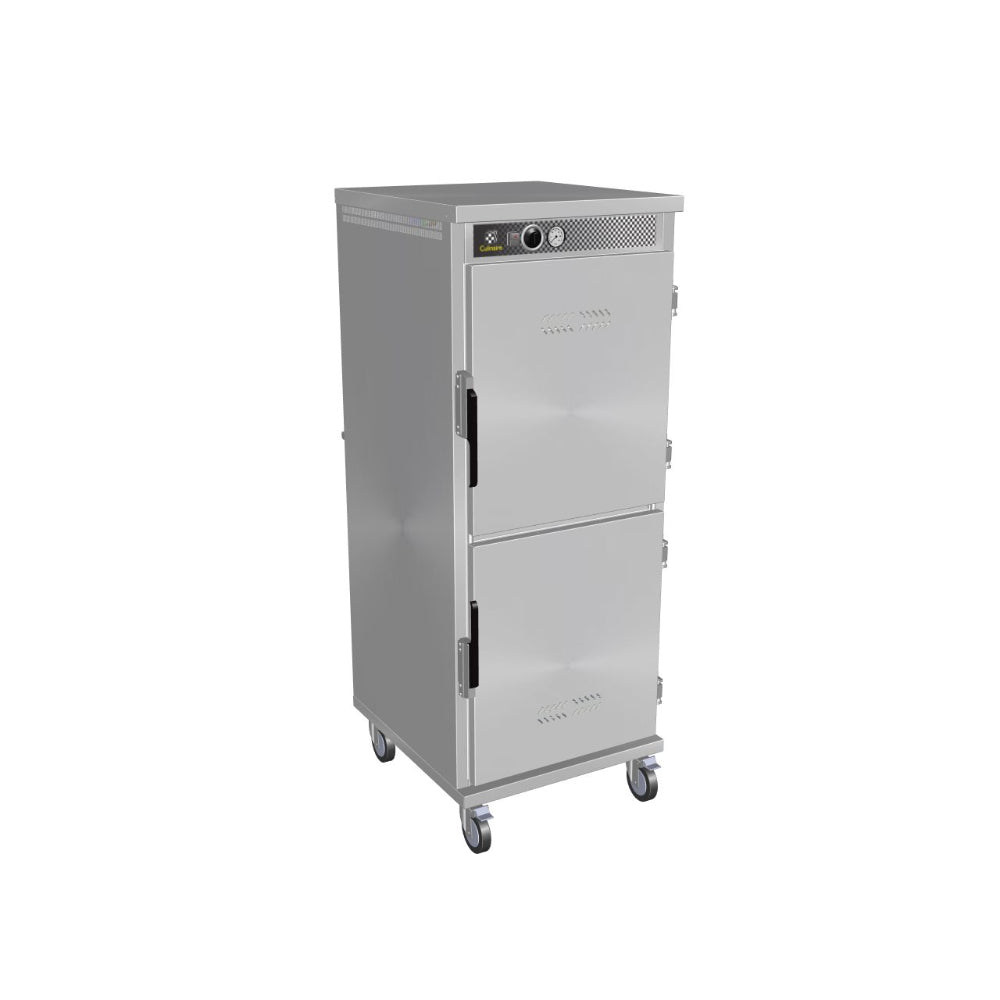

Culinaire CH.VHC.SD2.3011 Full Height Vertical Hot Cupboard with Two Half Doors

Vertical Hot Cupboards

The Culinaire CH.VHC.SD2.3011 is a full height vertical hot cupboard with two half doors for holding prepared food, plates and serving dishes during commercial service. Its mobile vertical cabinet provides heated storage in a compact footprint for catering and hospitality...

Add to wishlist
$7,383.29incl. GST SAVE $1,581.71
$6,712.08 ex. GST RRP $8,965.00 incl. GST
rent-try-buy
6,712.08 ex GST /Wk*
Based on 12mth Contract
  • Category : All, Cafés & Coffee Shops, Commercial Cooking Equipment, Culinaire, Food Display & Holding Equipment, Healthcare & Aged Care, Heated Food Display, Hotels, Pubs & Clubs, Restaurants & Takeaways, Schools & Education

The Culinaire CH.VHC.SD2.3011 is a full height vertical hot cupboard with two half doors for holding prepared food, plates and serving dishes during commercial service. Its mobile vertical cabinet provides heated storage in a compact footprint for catering and hospitality teams.

The vertical cabinet uses convective heat and a removable humidifier tray, with adjustable internal tray-slide rails. Load food after preheating it above 65°C and follow the supplier’s holding instructions. Check the required bench integration or floor position and the electrical connection against the linked model sheet.

Product Features

  • Commercial hot holding for prepared food, plates and serving dishes.
  • 304 grade stainless steel construction.
  • Mechanical temperature controls.
  • Convective heating with removable humidifier tray.
  • 125mm non-marking swivel castors with brakes.

Specifications

Manufacturer / supplier model Culinaire / CH.VHC.SD2.3011
Dimensions W × D × H 695 × 852 × 1815mm
Pan capacity 15 × 2/1 GN or 30 × 1/1 GN using 65mm-deep pans; pans sold separately
Food holding temperature 65°C to 90°C; load food preheated above 65°C
Supplier warranty 12-month parts and labour warranty; applicable supplier terms apply
Connected electrical load 2.25kW
Electrical supply / connection 240V; 1-phase + neutral + earth; Onsite connection by a qualified electrician
Packed shipping weight Not supplied — supplier confirmation required
Installation Follow the supplier manual and final installation drawing. Confirm dimensions, clearances, support and all applicable services before ordering. Use a qualified installer for fixed electrical connections; confirm the data plate and required circuit.

Included Equipment

  • Full Height Vertical Hot Cupboard with Two Half Doors.
  • Removable water/humidifier tray.
  • 15 sets of GN tray slides.
  • 7 × 2/1 GN chrome wire shelves.

Optional Accessories

  • Additional compatible GN shelves and tray slides.
  • Fan-forced variant by supplier quotation; not included in this model.

Food, plates, delivery bags, surrounding kitchen equipment and any items not listed as included are not supplied.

PDF Downloads
