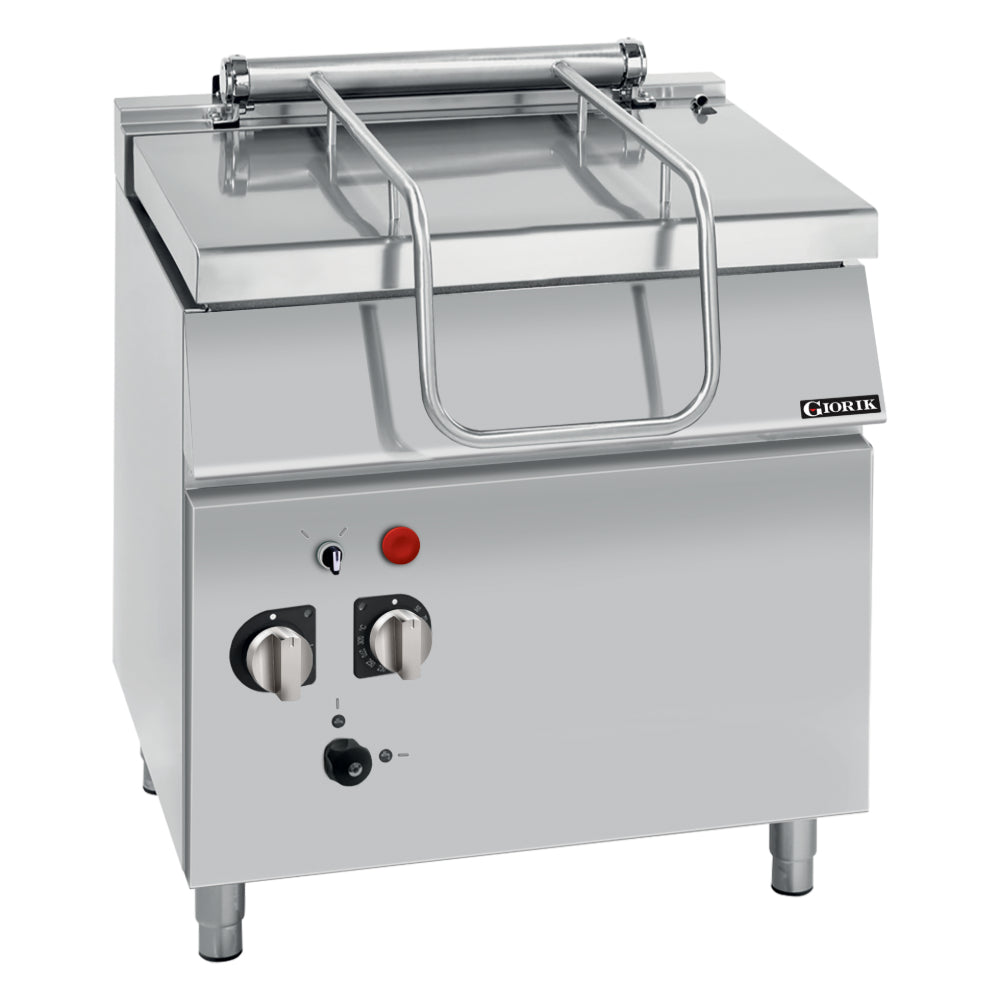

The Giorik BE94XAT is a commercial electric bratt pan listed in the 80 litre - electric electric tilt configuration. Its 800 × 970 × 980mm footprint helps establish the space required for the selected installation.
The selected cooking arrangement can be planned into a professional kitchen line using the model’s listed dimensions and service requirements. Check the work surface, base or oven configuration against the supplier sheet, and confirm the required connections and ventilation before installation.
Product Features
- 900 series, high performance electric bratt pan with 80 litre capacity and electric tilting pan (16.2kW)
- Duplex 2304 10mm thick stainless steel base for superior heat transfer, strength and corrosion resistance
- Heating elements with Hi-limit temperature protection
- Temperature regulation via thermostat (50°C - 300°C)
- Heating shut off via microswitch when the pan is tilted
- Indicator lights to monitor the correct operation of the appliance
- Water fill via integrated valve and spout
- Double skinned counterbalanced lid with rear condensation channel
- Robust 304 grade stainless steel construction with rounded corners for improved cleaning
Specifications
| Manufacturer / supplier model | Giorik / BE94XAT |
|---|---|
| Supplier configuration | 80 Litre - Electric Electric Tilt |
| Dimensions W × D × H | 800 × 970 × 980mm |
| Connected load / energy | 16.2kW |
| Electrical connection — model sheet | 3Ø + N + E |
| Product weight | 170kg — not the packed shipping weight |
| Packed shipping weight | 182kg |
| Supply voltage — model sheet | 415VAC; installer to confirm phase and required circuit |
| Supplier warranty | 24 months, subject to supplier terms and correct installation |
| Installation | Confirm support, access, clearances, ventilation and all required services against the final supplier drawing and manual. Fixed gas and electrical services require a licensed installer. |
Included Equipment
- Electric Bratt Pan in the supplier’s 80 Litre - Electric Electric Tilt configuration.
Optional Accessories
- Compatible extras are ordered separately; confirm exact accessory codes and quantities with ICE Group.
Food, cookware, surrounding equipment and installation services shown in lifestyle images are not included unless specifically listed above.
