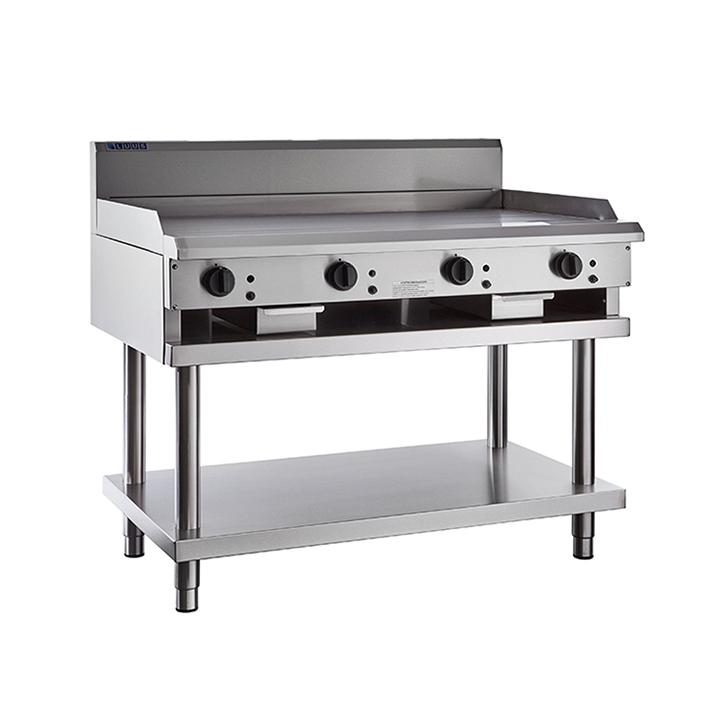

LUUS Professional Chrome Plated Griddle 1200mm - CS-12P
CS griddles can be combined with chargrills for configurations ranging from 300mm up to 1200mm wide. Ample heat from the burners are spread evenly across the cooking 16mm thick mild steel surface. Chrome plating and ribbed finishes available as an option extra.
15 month ‘Platinum Warranty’
Griddle/Hotplate
• 18 mj burners with pilot, FFD and piezo ignition
• Variable flame control valve with low flame setting
• 16mm thick mild steel griddle plate
• Top weld sealed hotplate sections
• CS-12P plate: 1190mm x 540mm; 0.64m2 cooking area
• 2mm 304 stainless steel splash guards
• Griddle oil bin 1.2mm stainless steel
Overall Construction
• Heavy duty construction
• Welded 1.2mm 304 stainless steel front hob
• Front and side panels 0.9mm 304 stainless steel
• Splashback 1.2 mm 304 stainless steel
• Stainless steel legs with 55mm height adjustment range
• Modular Professional series design
Dimensions
• 1200mm x 800mm x 1100mm H
• Working height 900mm
• Weight 146kg
• Packed dimensions 1240mm x 860mm x 1260mm H
• Packed weight 176kg
Connections
• Gas 3/4” BSP male
• 180mm from right, 50mm from rear, 600mm from floor
• Supplied with Natural gas regulator
Cleaning & Servicing
• Easy access to all parts & components from front
