ONLINE ONLY

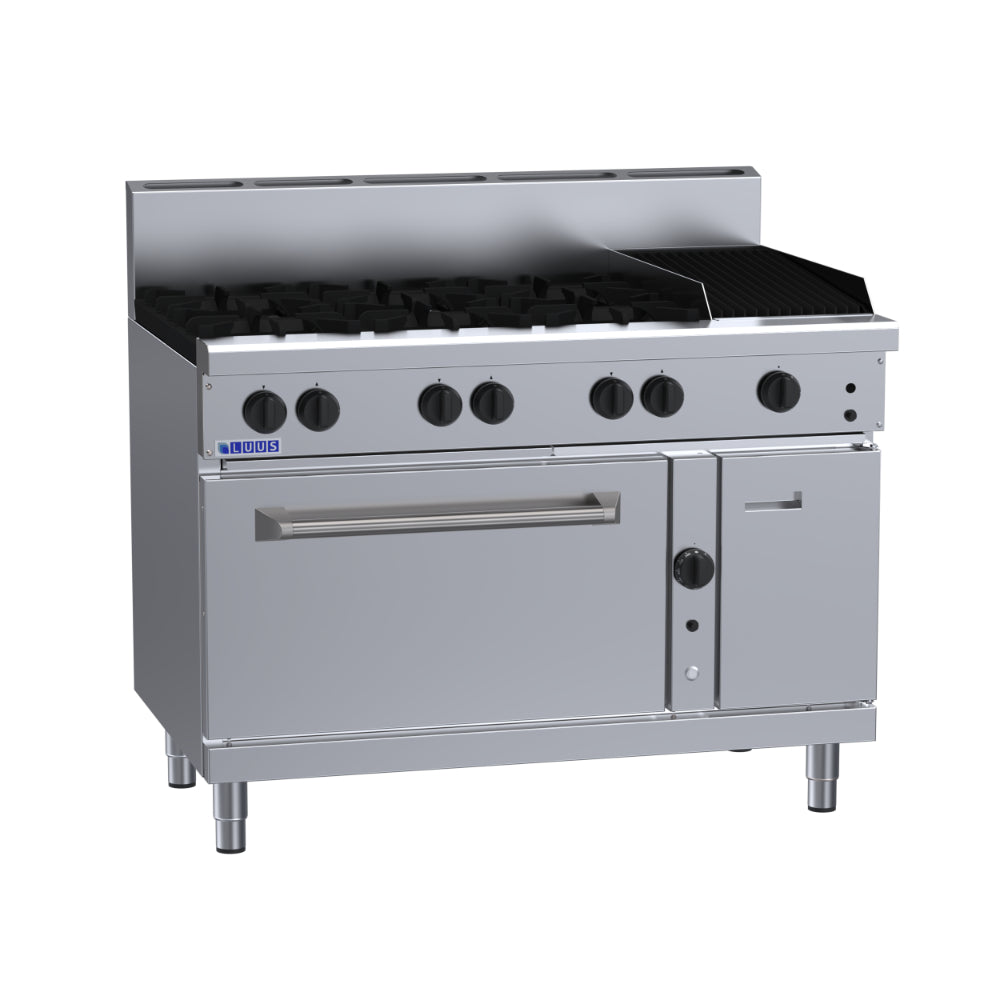

The LUUS RF-6B3C is a convection oven range with a 1200 mm-wide format. It combines a cooking surface and an oven in one unit, keeping both cooking functions within the same station.
Luus static ovens feature a thick mild steel sole plate to ensure even heat distribution, while 28mj open burners fitted with flame failure deliver performance and safety. The RS-6B3C includes six open burners, a 300mm chargrill plus static oven, and at only 800mm deep it is ideal for small spaced kitchens.
Product Features
- 6 Burner 300mm Chargrill with Convection Oven
- Professional series
- 6 Burner 300mm Chargrill & Convection Oven with flame failure
Open Burners
- Nickel plated cast iron 28 mj dual-flame ring burners
- Flame failure device standard (pilots optional extra)
- Variable flame control valve with low flame setting
- Heavy duty cast iron trivets
- Pressed 0.7mm 304 stainless steel spillage bowls
- Oven
- 29mj oven burner with mild steel sole plate
- Oven flame failure, pilot & piezo ignition as standard
- 100-340° C thermostat control
- Internal cooking space: 740mm x 550mm x 300mm H
- Vitreous enamel 1.5mm internal oven door/wall lining
- Fibertex Rockwool insulation in oven walls & doors
- French (swing) doors for easy oven access
- 304 stainless steel ‘cool touch’ door handles
- Suits 2/1 Gastronorm size trays
- Chrome oven rack supports with 4 positions
- Supplied with 2 oven racks
Chargrill/Barbecue
- 33 mj burners with pilot, FFD and piezo ignition
- Cast-iron radiant hood system (ceramic rocks optional)
- RS-6B3C bbq: 280mm x 520mm; 0.15m2 cooking area
Overall Construction
- Heavy duty construction
- Welded 1.2mm 304 stainless steel front hob
- Front, side & door panels 0.9mm 304 stainless steel
- Splashback 1.2 mm 304 stainless steel
- Stainless steel feet with 55mm height adjustment range
- Secondary catchment tray 0.9mm stainless steel
- Storage compartment (250mm x 600mm x 480mm H)
Cleaning & Servicing
- Removable burner hoods and spillage bowls
- Secondary undertray to catch any additonal waste
- Oven racks, supports and sole plate easy to remove
- Easy access to all parts & components from front
Optional accessories
Optional items are not included unless specified in your order.
- Rear castors
- Plots to open burners
- Ribbed or chrome finish on hotplates
- RH and LH side shields
Specifications
| Model | RF-6B3C |
|---|---|
| Dimensions (W × D × H) | 1200 × 800 × 1100 mm |
| Unit weight | 228 kg |
| Electrical output | 0.02 kW |
| Voltage | 240 V |
| Current | 0.1 A |
| Phase | 1 |
| Natural gas input | 258 MJ/h |
| LPG input | 234 MJ/h |
| Packed dimensions (W × D × H) | 1240 × 860 × 1260 mm |
| Packed weight | 258 kg |
| Warranty | 2 years via registration |
