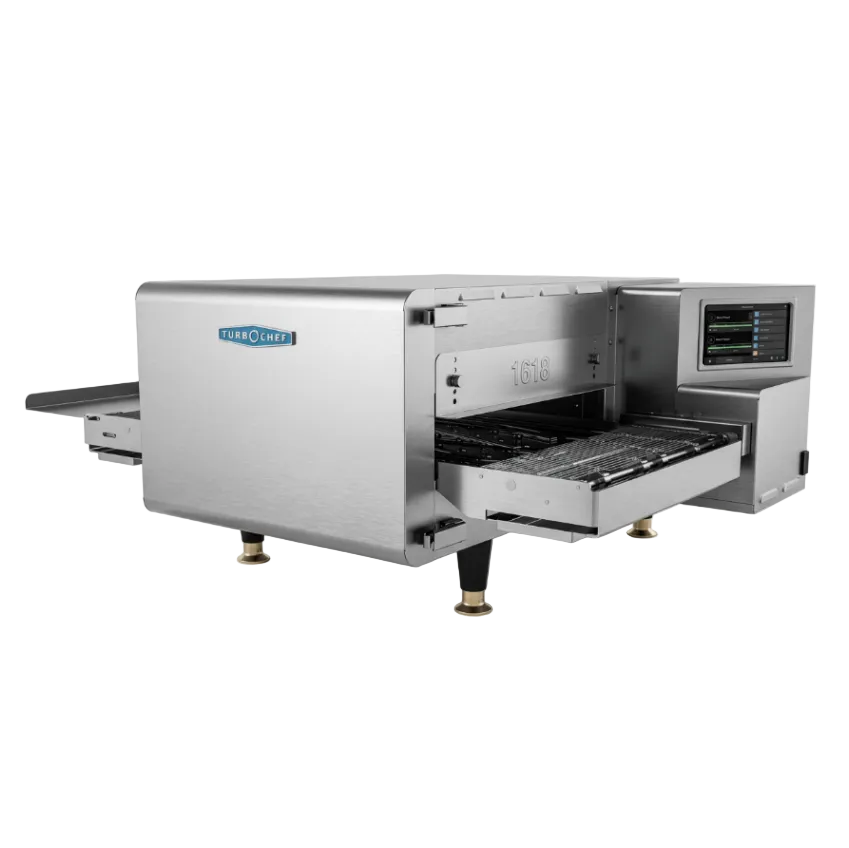

The TurboChef SPTC.HHC.1618.36.V Conveyor Oven brings conveyor cooking to a commercial kitchen line.
Plan the single-belt format around your menu, bench space and service workflow. Review the exact belt dimensions and electrical connection before ordering.
Key features
- 7” intuitive capacitive touch screen, featuring durable tempered glass
- Variable-speed recirculating air impingement system
- Idle mode for energy conservation
- Self-diagnostics for monitoring oven components and performance
- Independently-controlled top and bottom air impingement
- Integral recirculating catalytic converter for ventless operation
- All stainless steel interior construction
- 400mm (16”) cook chamber opening
- 914mm (36”) conveyor belt assembly with left or right feed conveyor belt direction (via software)
- Stackable design up to 3 high (requires stacking kit, sold separately)
- Includes two 150mm (6”) conveyor extensions
- External air filtration
- Easy to clean mono-finger design
- Cool to touch covers and panels
- 12-month warranty (Terms and conditions apply)
Specifications
| Model / MPN | SPTC.HHC.1618.36.V |
|---|---|
| Overall dimensions (W × D × H) | 1222 x 805 x 432 mm |
| Net weight | 89 kg |
| Power | 7.4kW |
| Electrical connection | 3 phase + neutral + earth, 400VAC / 50Hz; 20A plug and lead |
| Belt dimensions (W × L) | 406 × 914 mm |
Freight and installation
Box: 914 x 1062 x 591 mm; 107 kg; Crate: 1130 x 1041 x 591 mm; 116 kg. Confirm the selected packing method and final freight details before dispatch.
Ventless capability does not remove site-specific ventilation, electrical or installation requirements. Have a qualified installer confirm clearances, supply and local requirements against the manufacturer documentation.
Image note: Supplier images show the oven family. Confirm the ordered belt configuration before approval.
The secondary kitchen image is an AI-generated editorial illustration, not a customer installation photograph.
Downloads
Download the supplier specification sheet (PDF)
Download the TurboChef HhC 1618 / 2020 / 2620 owner’s manual (PDF)
