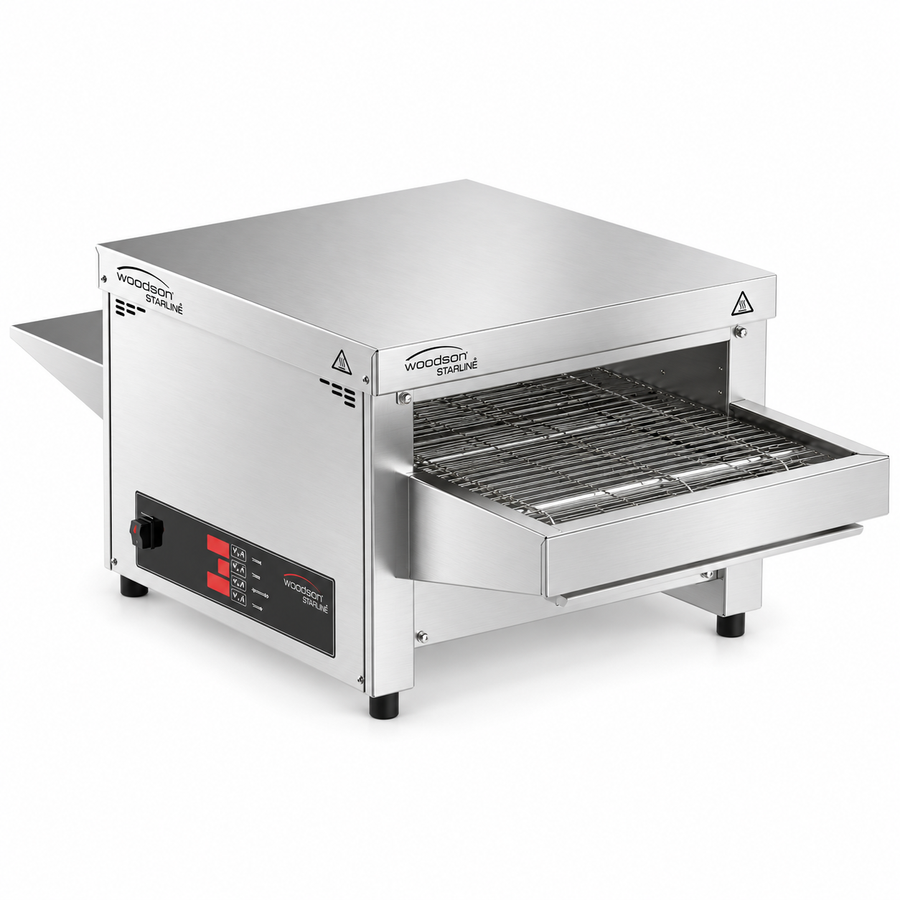

Woodson Starline W.CVS.L.30L 450mm Snackmaster Conveyor Oven - Left to Right

Conveyor Ovens

The Woodson Starline W.CVS.L.30L is the left-to-right configuration of the W.CVS.L.30, built for continuous cooking on a 450mm conveyor belt. It gives cafes, takeaway kitchens and hospitality venues a defined feed direction that can be matched to the preparation and...

Add to wishlist
$8,379.89incl. GST Save $1,795.11
$7,618.08 ex. GST RRP $10,175.00
rent-try-buy
7,618.08 ex GST /Wk*
Based on 12mth Contract
  • Category : All, Benchtop Equipment, Cafés & Coffee Shops, Commercial Cooking Equipment, Commercial Ovens, Hotels, Pubs & Clubs, Restaurants & Takeaways, Schools & Education

The Woodson Starline W.CVS.L.30L is the left-to-right configuration of the W.CVS.L.30, built for continuous cooking on a 450mm conveyor belt. It gives cafes, takeaway kitchens and hospitality venues a defined feed direction that can be matched to the preparation and service line.

Independent top and bottom heat controls and variable conveyor speed help tailor the cooking process to the menu. This listing is specifically for the L-suffix, left-to-right model; check bench space, ventilation and the electrical connection before ordering.

Product Features

  • Left-to-right conveyor configuration
  • Independent top and bottom element and temperature control
  • Thermostatic temperature range 50°C to 350°C
  • Variable belt speed with automatic tensioning
  • Touchpad controls and fan-assisted heat distribution
  • Insulated top and body with stainless-steel construction

Specifications

Brand / model Woodson / W.CVS.L.30L
Dimensions W x D x H (mm) 1200 x 628 x 465
Conveyor belt width 450mm
Cooking chamber W x L x H (mm) 480 x 600 x 85
Conveyor direction Left to right
Electrical supply 7.2kW; single phase 240V / 50Hz; 30A supply, onsite connection; lead supplied
Indicative output Approx. 15 x 12-inch pizzas per hour; varies with dough, toppings and loading
Net weight 76kg (matching oven model family)
Manufacturer warranty 12 months onsite, subject to manufacturer terms

Included Equipment

  • Conveyor oven with 450mm conveyor belt and extensions
  • Electrical lead for onsite connection

Optional Accessories

  • W.SKCV.L.30 stacking kit
  • Optional factory-fitted plug ordered separately
  • Additional pizza pans and mesh trays

Installation & Care

Allow the manufacturer’s ventilation and service clearances. Electrical connection and site assessment must be completed by a suitably qualified installer. Trays, stands, stacking kits and plug upgrades are supplied only where listed above.

Availability & Delivery

Online-only supplier-dispatch item. Confirm dispatch timing, delivery access and installation requirements with ICE Group before ordering. Freight is calculated at checkout.

Weight shown is the published net equipment weight. Packed freight dimensions and weight may differ.

PDF Downloads

View manufacturer product information

Base-model imagery represents the same oven family. Conveyor operation supplied under this SKU is left to right; the product has not been mirrored in the images.

Food, surrounding equipment and optional accessories shown in application images are not included unless listed under Included Equipment.
