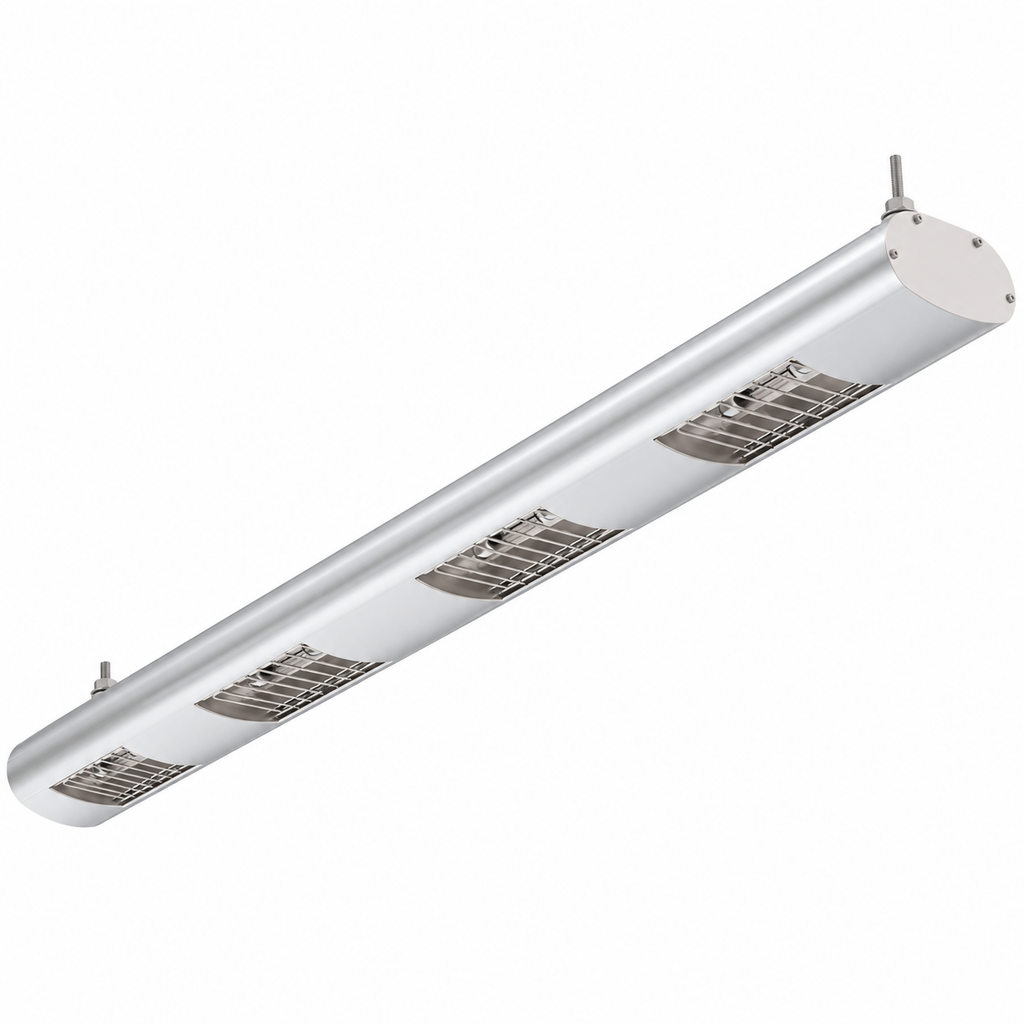

The Woodson W.HLE1450.FB is a 1450mm fabricator heat-lamp assembly for an open kitchen pass or food preparation and serving area. Its 4 quartz infrared lamps provide overhead heat and light within a slim aluminium channel.
The FB version is designed for custom integration and onsite electrical connection. It includes 1.7 metre wire tails for connection to a separate controller supplied by others; a fitted switch, plug and controller are not included.
Product Features
- 1450mm long extruded aluminium housing
- 4 x replaceable 300W quartz infrared lamps
- Stainless-steel safety cage for each lamp
- Overhead heating for open pass-through applications
- Fabricator version with 1.7 metre wire tails
- Custom installation with controller supplied separately
Specifications
| Brand / model | Woodson / W.HLE1450.FB |
|---|---|
| Dimensions W x D x H (mm) | 1450 x 118 x 83 |
| Heating lamps | 4 x 300W quartz infrared |
| Total connected load | 1.2kW |
| Electrical supply | Single phase + neutral + earth; 240V / 50Hz; onsite connection |
| Controller | By others; not included |
| Connection tails | 1.7 metres |
| Net weight | 4.5kg |
| Manufacturer warranty | 12 months onsite, subject to manufacturer terms |
Included Equipment
- One 1450mm fabricator heat-lamp assembly
- 4 quartz infrared lamps with individual safety cages
- 1.7 metre wire tails
Optional Accessories
- Compatible external controller and installation components, specified by the installer
Installation & Care
Installation and connection must be completed by a qualified installer. Follow the manufacturer’s mounting and clearance instructions and keep the lamp in an open pass arrangement.
Availability & Delivery
Online-only supplier-dispatch item. Confirm dispatch timing, delivery access and installation requirements with ICE Group before ordering. Freight is calculated at checkout.
Weight shown is the published net equipment weight. Packed freight dimensions and weight may differ.
PDF Downloads
View manufacturer product information
Illustrative product imagery is based on the manufacturer’s FB assembly photographs and model drawing. Plates, shelves and food in application images are not supplied.
