Airex AXR.CB.2 1008mm 2 Drawer Refrigerated Chef Base

Refrigerated Drawers

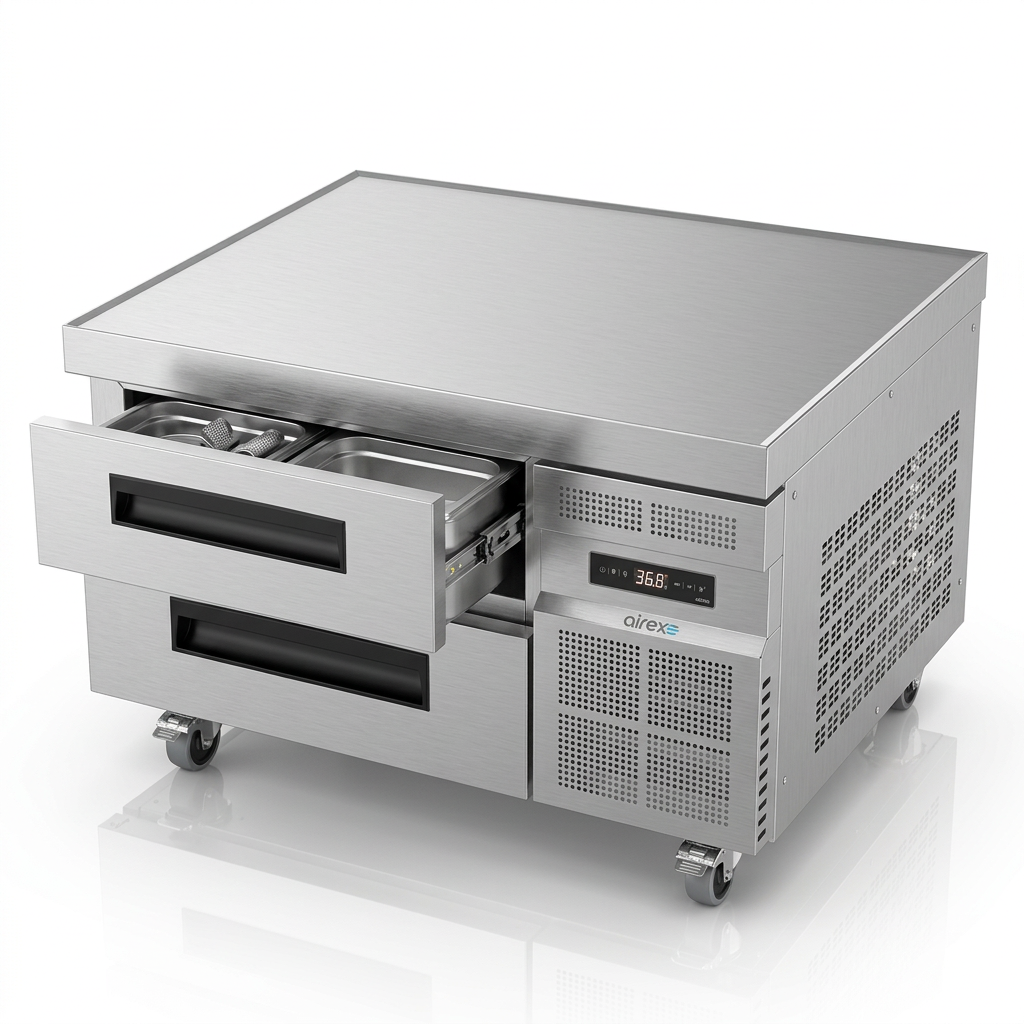

The Airex AXR.CB.2 is a 2-drawer refrigerated chef base measuring 1008 × 820 × 600mm. It places chilled ingredients beneath a work surface designed to support a maximum load of 200kg when installed to the manufacturer’s requirements.

Add to wishlist
$2,800.08
$3,080.08 inc gst
rent-try-buy
2,800.08 ex GST /Wk*
Based on 12mth Contract
  • Category : All, Cafés & Coffee Shops, Commercial Refrigeration, Hotels, Pubs & Clubs, New Arrivals, Refrigeration & Ice Machines, Restaurants & Takeaways

The Airex AXR.CB.2 is a 2-drawer refrigerated chef base measuring 1008 × 820 × 600mm. It places chilled ingredients beneath a work surface designed to support a maximum load of 200kg when installed to the manufacturer’s requirements.

Removable drawers, a pan divider kit and the supplied GN pans support an organised preparation station. Digital temperature control from 0°C to 5°C keeps the refrigeration settings accessible, while an integrated heat shield and marine edge top protect against heat and spills. Lockable castors and a removable filter assist positioning and routine cleaning.

Product Features

  • Two removable refrigerated drawers
  • Supplied with 1 x 1/1GN 65mm pan and 3 x 1/6 65mm deep pans per drawer. Accommodates up to 100mm deep 1/1GN pans
  • Supplied standard with pan divider kit for flexible configurations
  • Integrated heat shield and marine edge top protects from heat and spills
  • Adjustable digital temperature controller (0°- 5°C)
  • Environmentally friendly R290 hydrocarbon refrigerant
  • Removable filter for easy cleaning
  • Equipped with standard lockable castors
  • Ergonomic non-catch handles
  • Protective coating on refrigeration coil to prevent corrosion

Specifications

Manufacturer / model Airex / AXR.CB.2
Dimensions W × D × H 1008 × 820 × 600mm
Operating temperature 0°C - 5°C
Total connected electrical load 0.2kW
Electrical connection Single phase + neutral + earth; 230V AC / 50Hz; 10A plug and lead
Refrigerant R290
Climate class 4M1
Maximum ambient temperature 40°C
Net product weight 79kg
Packed dimensions W × D × H 1065 × 880 × 710mm
Packed shipping weight 94kg
Maximum top load 200kg
Warranty 24 months on-site parts and labour
Installation Install level and follow the model manual for ventilation, location and electrical requirements. Confirm available space and access before ordering.

Included Equipment

  • Refrigerated chef base with removable drawers.
  • Supplied with 1 x 1/1GN 65mm pan and 3 x 1/6 65mm deep pans per drawer. Accommodates up to 100mm deep 1/1GN pans.
  • Supplied standard with pan divider kit for flexible configurations.
  • Lockable castors; 10A plug and lead.

Optional Accessories

  • No optional accessory codes are confirmed in the supplied model specification sheet.

Food, beverages, loose storage containers and surrounding kitchen equipment shown in lifestyle images are presentation props unless specifically listed as included.
