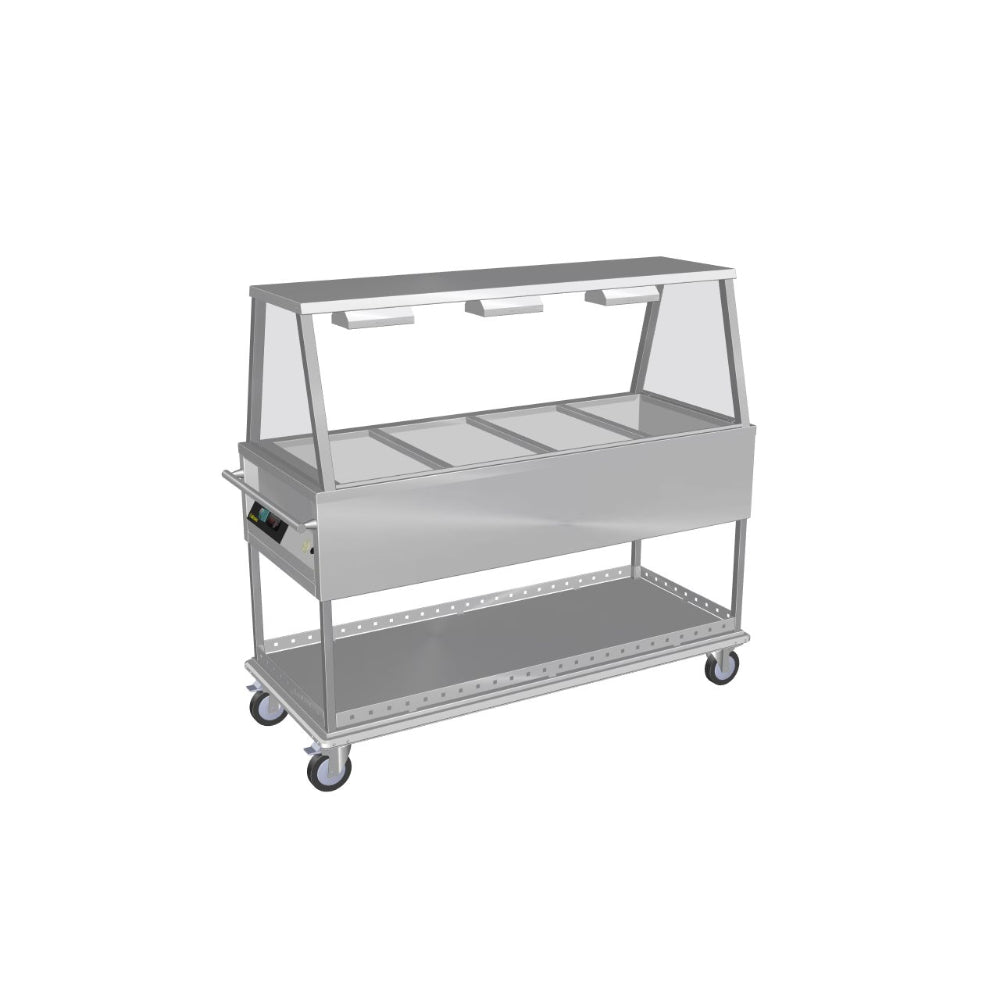

The Culinaire CH.BMM.GA.4 is a 4-bay mobile bain marie with heated a-frame gantry for a mobile service station. It gives hospitality and catering teams a dedicated place to hold and present prepared food, with the selected 4-bay configuration matched to the available service space.
The bain marie provides a dedicated well for prepared food during service. The stainless steel construction supports regular commercial cleaning and service. The supplied gantry forms part of this model; its heating arrangement is specified separately below. Confirm the electrical connection, any water and waste services, and the final installation dimensions against the linked supplier sheet before ordering.
Product Features
- 304 grade stainless steel construction.
- For dry operation, contact Stoddart before use and follow the applicable installation and operation manual. Dry operation may cause greater temperature variation and require temperature-probe relocation by a qualified technician.
- Digital temperature control for holding prepared food between 65°C and 90°C.
- Double-skinned air-insulated construction.
- Manual water filling and valve-operated draining.
- Well suits gastronorm pans up to 150mm deep; pans are sold separately.
- A-frame gantry with quartz infrared heat lamps.
Specifications
| Manufacturer / supplier model | Culinaire / CH.BMM.GA.4 |
|---|---|
| Dimensions W × D × H | 1551 × 646 × 1375mm |
| Bay configuration | 4 bay |
| Food holding temperature | 65°C to 90°C; load food preheated above 65°C |
| Pan compatibility | Gastronorm pans up to 150mm deep; pans sold separately |
| Supplier warranty | 12-month parts and labour warranty; applicable supplier terms apply |
| Connected electrical load | 3.3kW |
| Electrical supply / connection | 240V; 15A plug and lead fitted |
| Water connection | G 1/2” BSP |
| Waste connection | 1 1/4” BSP |
| Packed shipping weight | Not supplied — supplier confirmation required |
| Installation | Follow the supplier manual and final installation drawing. Confirm dimensions, clearances, support and all applicable services before ordering. Use a qualified installer for fixed electrical connections; confirm the data plate and required circuit. |
Included Equipment
- Mobile Bain Marie with Heated A-Frame Gantry, 4-bay configuration.
- Pan dividers.
Optional Accessories
- Compatible gastronorm pans, sold separately.
- Radius-well configuration, specified at time of order and quoted separately.
- Factory-fitted folding work shelf, specified at time of order and sold separately.
- Additional large pan dividers CA.PXL, sold separately.
- Additional cross pan dividers CA.PXS, sold separately.
Food, plates, delivery bags, surrounding kitchen equipment and any items not listed as included are not supplied.
