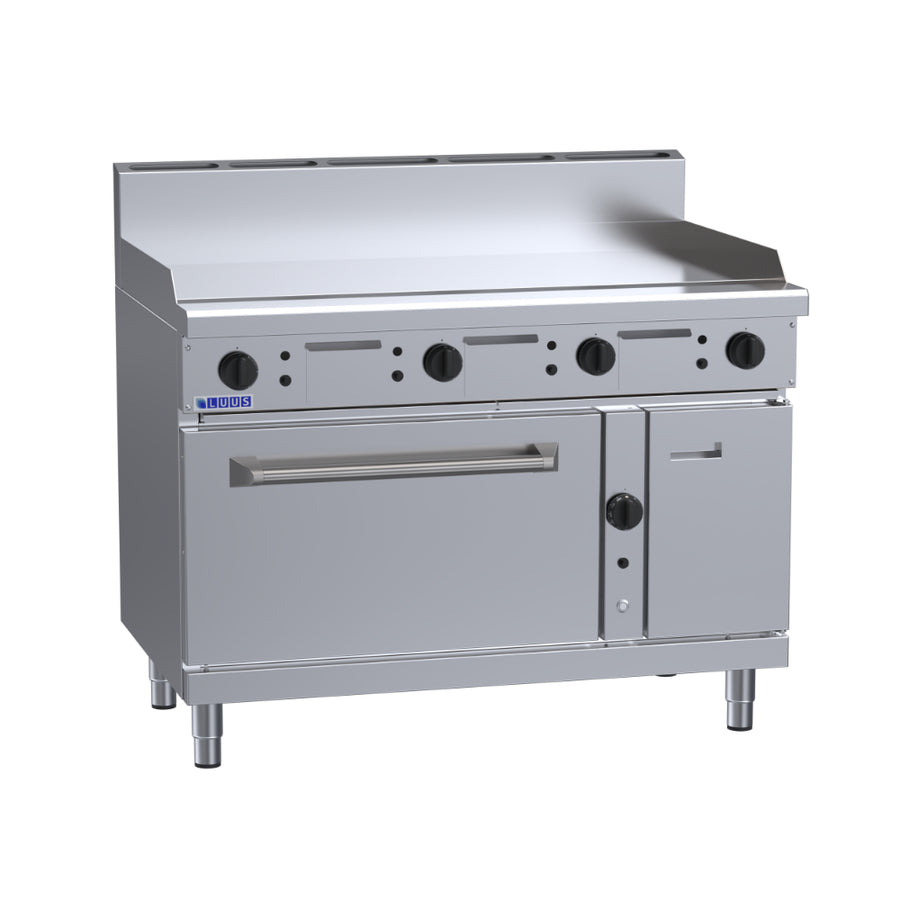

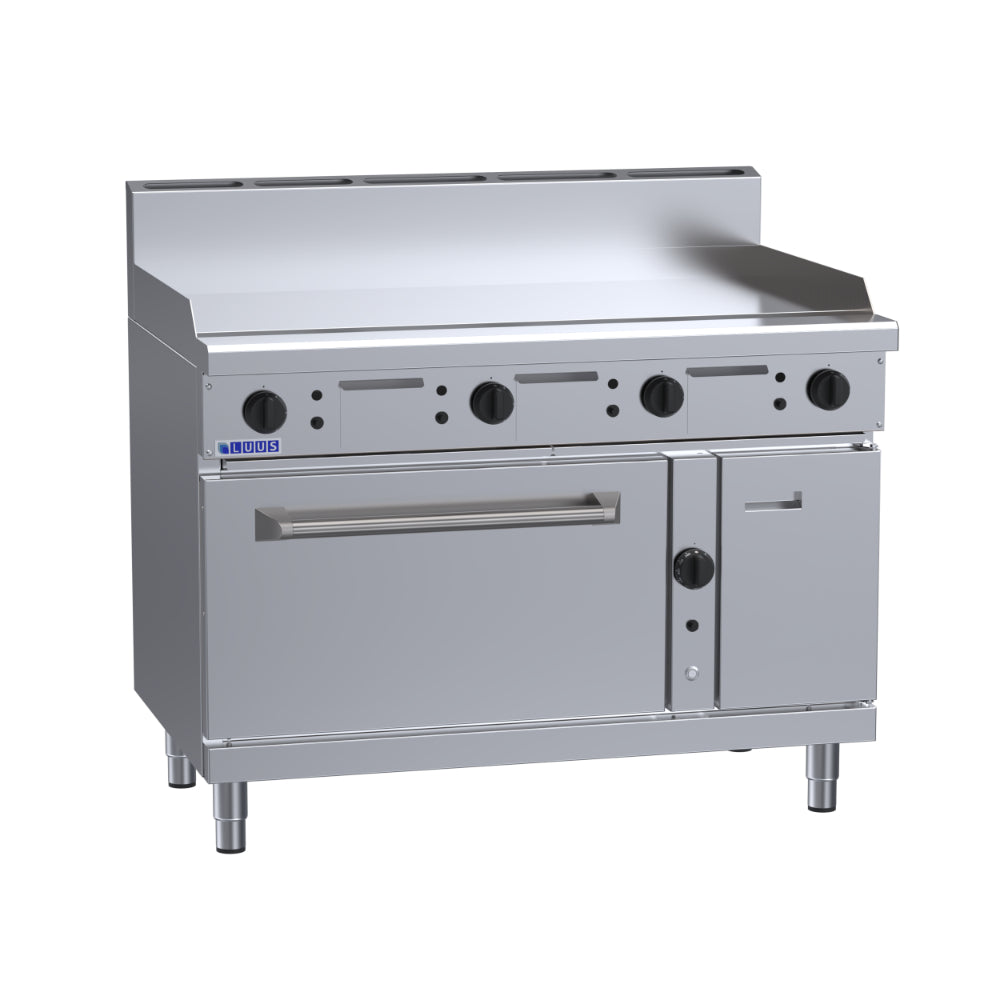

LUUS 1200mm Griddle with Convection Oven - RF-12P

Convection Oven Range

The LUUS RF-12P is a 1200mm commercial gas griddle range & convection oven. It combines cooktop preparation and oven cooking in one commercial range.

Add to wishlist
$13,121.99incl. GST Save $4,038.01
$11,929.08 ex. GST RRP $17,160.00
rent-try-buy
11,929.08 ex GST /Wk*
Based on 12mth Contract
  • Category : All, BBQs & Grills, Commercial Convection Ovens, Commercial Cooking Equipment, Commercial Ovens, Restaurants & Takeaways

The LUUS RF-12P is a 1200mm commercial gas griddle range & convection oven. It combines cooktop preparation and oven cooking in one commercial range.

A side-mounted fan circulates heat through the oven for roasting meat and vegetables. Thermostatic control and adjustable rack positions help organise successive batches.

Product Features

  • Mild-steel griddle plate, 21 mm thick, with 2 mm stainless splash guards.
  • Griddle burners use pilot ignition, piezo ignition and flame-failure protection.
  • Oven: 33 MJ/h burner, cast-iron sole plate and 100–340°C thermostat; fan-forced circulation.
  • 2/1 Gastronorm capacity; two chrome racks supplied with four support positions.
  • Insulated oven walls and door, drop-down access and stainless handles.
  • Removable oven racks, supports and sole plate; service access from the front.

Specifications

Model RF-12P
Natural gas input 107 MJ/h
LPG input 107 MJ/h
Gas connection Regulator supplied; specify natural gas or LPG when ordering
Electrical requirements Single Phase 220 - 240V 10A Plug, 50Hz
Working height 900mm
Dimensions (W × D × H) 1200 × 800 × 1100 mm
Unit weight 224 kg
Packed dimensions (W × D × H) 1240 × 840 × 1260 mm
Packed weight 254 kg
Feet adjustment 55 mm height adjustment
Griddle cooking area (W × D) 1194 × 530 mm
Oven cavity (W × D × H) 710 × 585 × 350 mm
Warranty 1 year included; additional year upon registration

Optional extras and configurations

Available separately; not included as standard.

  • Fixed rear castors or braked swivel front castors.
  • Left/right side shields and plinth mounting.
  • Ribbed or chrome-finished griddle surface.
