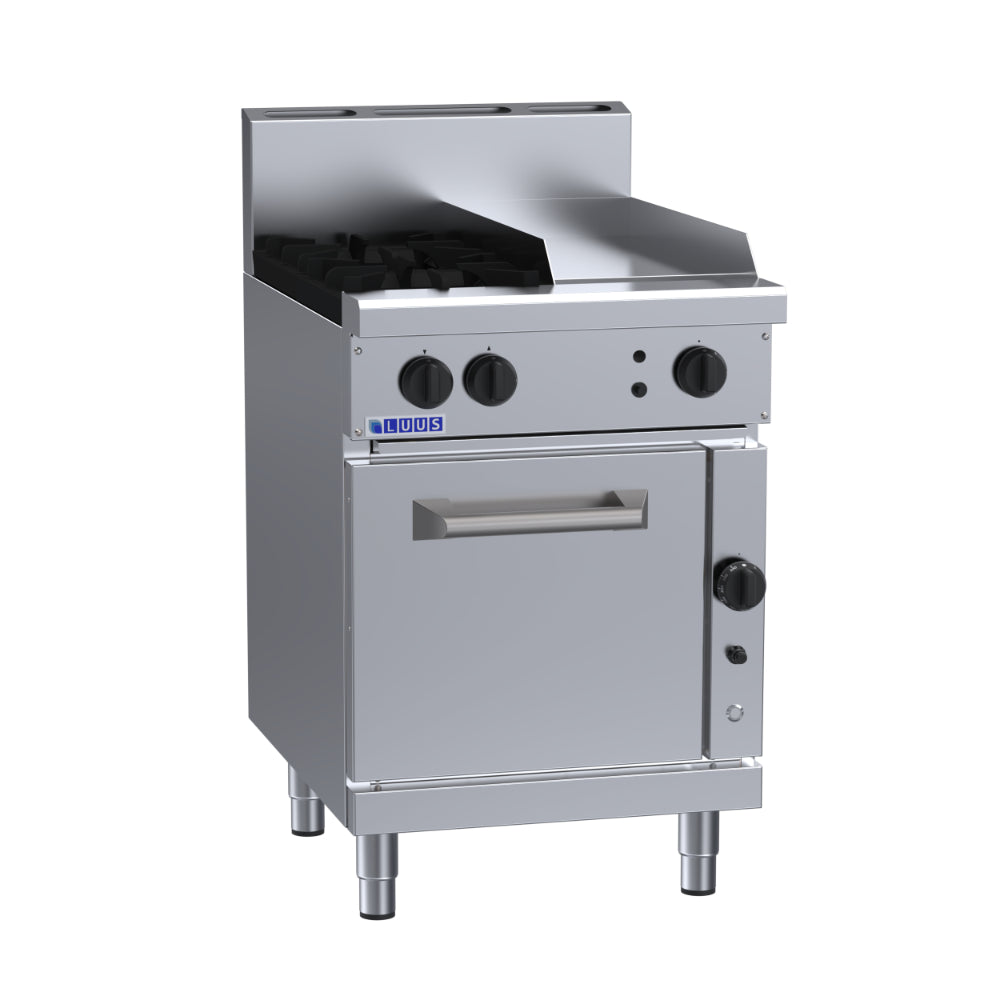

LUUS 2 Burner 300mm Griddle with Convection Oven - RF-2B3P

Convection Oven Range

The LUUS RF-2B3P is a convection oven range with a 600 mm-wide format. It combines a cooking surface and an oven in one unit, keeping both cooking functions within the same station.Luus static ovens feature a thick mild steel sole...

Add to wishlist
$7,983.07
$8,781.37 inc gst
rent-try-buy
7,983.07 ex GST /Wk*
Based on 12mth Contract
  • Category : All, BBQs & Grills, Commercial Convection Ovens, Commercial Cooking Equipment, Commercial Ovens, Restaurants & Takeaways

The LUUS RF-2B3P is a convection oven range with a 600 mm-wide format. It combines a cooking surface and an oven in one unit, keeping both cooking functions within the same station.

Luus static ovens feature a thick mild steel sole plate to ensure even heat distribution, while 28mj open burners fitted with flame failure deliver performance and safety. The RS-2B3P includes two open burners, a 300mm griddle plate plus static oven, and at only 800mm deep they are ideal for small spaced kitchens.

Product Features

  • 2 Burner 300mm Griddle with Convection Oven
  • Professional series
  • 2 Burner 300mm Griddle & Convection Oven with flame failure

Open Burners

  • Nickel plated cast iron 28 mj dual-flame ring burners
  • Flame failure device standard (pilots optional extra)
  • Variable flame control valve with low flame setting
  • Heavy duty cast iron trivets
  • Pressed 0.7mm 304 stainless steel spillage bowls
  • Oven
  • 29mj oven burner with mild steel sole plate
  • Oven flame failure, pilot & piezo ignition as standard
  • 100-340° C thermostat control
  • Internal cooking space: 440mm x 550mm x 300mm H
  • Vitreous enamel 1.5mm internal oven door/wall lining
  • Fibertex Rockwool insulation in oven walls & doors
  • French (swing) doors for easy oven access
  • 304 stainless steel ‘cool touch’ door handles
  • Suits 1/1 Gastronorm size trays
  • Chrome oven rack supports with 4 positions
  • Supplied with 2 oven racks
  • Griddle/Hotplate
  • 18 mj burners with pilot, FFD and piezo ignition
  • 21mm thick mild steel griddle plate
  • RS-6P plate: 590mm x 540mm; 0.32m2 cooking area
  • RS-2B3P plate: 290mm x 540mm; 0.16m2 cooking area
  • 2mm 304 stainless steel splash guards

Overall Construction

  • Heavy duty construction
  • Welded 1.2mm 304 stainless steel front hob
  • Front, side & door panels 0.9mm 304 stainless steel
  • Splashback 1.2 mm 304 stainless steel
  • Stainless steel feet with 55mm height adjustment range
  • Secondary catchment tray 0.9mm stainless steel

Cleaning & Servicing

  • Removable burners, hoods and spillage bowls
  • Secondary undertray to catch any additonal waste
  • Oven racks, supports and sole plate easy to remove
  • Easy access to all parts & components from front

Optional accessories

Optional items are not included unless specified in your order.

  • Rear castors
  • Plots to open burners
  • Ribbed or chrome finish on hotplates
  • RH and LH side shields

Specifications

Model RF-2B3P
Dimensions (W × D × H) 600 × 800 × 1100 mm
Unit weight 135 kg
Electrical output 0.02 kW
Voltage 240 V
Current 0.1 A
Phase 1
Natural gas input 115.5 MJ/h
LPG input 107.5 MJ/h
Packed dimensions (W × D × H) 640 × 860 × 1260 mm
Packed weight 148 kg
Warranty 2 years via registration
