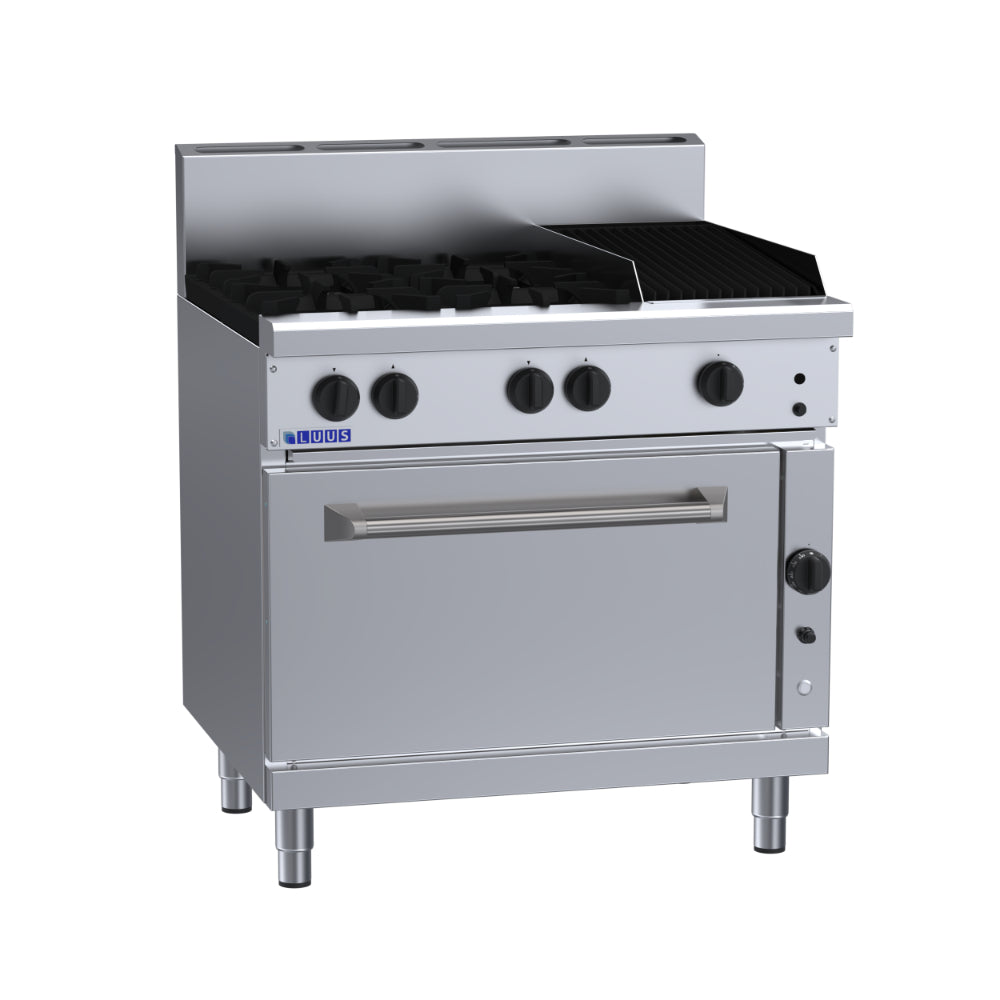

LUUS 4 Burner 300mm Chargrill with Convection Oven - RF-4B3C

Convection Oven Range

The LUUS RF-4B3C is a 900mm Gas 4 burner 300mm chargrill range & convection oven. It combines cooktop preparation and oven cooking in one commercial range.

Add to wishlist
$10,850.49incl. GST Save $3,339.51
$9,864.08 ex. GST RRP $14,190.00
rent-try-buy
9,864.08 ex GST /Wk*
Based on 12mth Contract
  • Category : All, Commercial Convection Ovens, Commercial Cooking Equipment, Commercial Gas Cooktops, Commercial Ovens, Restaurants & Takeaways

The LUUS RF-4B3C is a 900mm Gas 4 burner 300mm chargrill range & convection oven. It combines cooktop preparation and oven cooking in one commercial range.

A side-mounted fan circulates heat through the oven for roasting meat and vegetables. Thermostatic control and adjustable rack positions help organise successive batches.

Product Features

  • 4 double-crown burners with enamelled cast-iron construction.
  • Each open burner: 32 MJ/h natural gas or 28 MJ/h LPG; variable flame control and flame-failure protection.
  • Cast-iron trivets and pressed 304 stainless-steel spill bowls.
  • Chargrill with cast-iron J-grates and a 253 MA steel radiant hood.
  • Chargrill burner: 33 MJ/h, with pilot, piezo ignition and flame-failure protection.
  • Oven: 33 MJ/h burner, cast-iron sole plate and 100–340°C thermostat; fan-forced circulation.
  • 2/1 Gastronorm capacity; two chrome racks supplied with four support positions.
  • Insulated oven walls and door, drop-down access and stainless handles.
  • Removable oven racks, supports and sole plate; service access from the front.

Specifications

Model RF-4B3C
Natural gas input 194 MJ/h
LPG input 178 MJ/h
Gas connection Regulator supplied; specify natural gas or LPG when ordering
Electrical requirements Single Phase 220 - 240V 10A Plug, 50Hz
Working height 900mm
Dimensions (W × D × H) 900 × 800 × 1100 mm
Unit weight 179 kg
Packed dimensions (W × D × H) 940 × 840 × 1260 mm
Packed weight 204 kg
Feet adjustment 55 mm height adjustment
Chargrill cooking area (W × D) 292 × 516 mm
Oven cavity (W × D × H) 710 × 585 × 350 mm
Warranty 1 year included; additional year upon registration

Optional extras and configurations

Available separately; not included as standard.

  • Fixed rear castors or braked swivel front castors.
  • Left/right side shields and plinth mounting.
  • Pilot lights for the open burners.
  • Drop-on griddle plate for two open burners.
