Overview

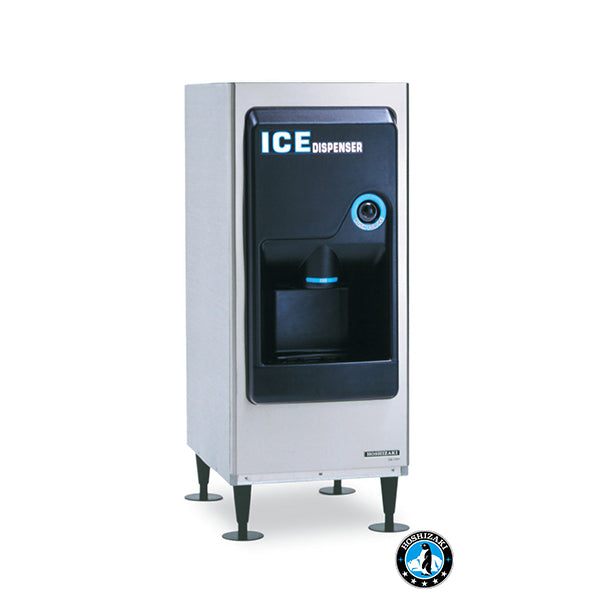

The Hoshizaki DB-200H-Hotel is a commercial ice dispenser designed for convenient, hygienic service in hotels, workplaces and hospitality operations.
USER FRIENDLY PUSH TO DISPENSE
The Hoshizaki DB-200H Hotel Crescent dispenser has a storage capacity of 90kg and dispenses at 5kg per minute. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows clean, individual, crescent ice cubes to be dispensed with a simple push of a button.
Required water filter
Water Filter Kit 80-250 - 81000116-87000105 (Sold Separately)
Suitable top kits: KMD-201AB SS, KMD-270AB, KM-660MAJ-E - (SOLD SEPARATELY)
Key features
- Produce more quality ice.
- Crystal clear, hard individual uniquely shaped Crescent cubes that last longer in drinks.
- Use less energy.
- Cycle 1/2 as many times as competition.
- Cubes do not clump together in storage bins.
- Unique stainless steel evaporator design which is unaffected by caustic water, harsh cleaning agents and does not crack or peel like nickel plated evaporators.
- Push-button single auger agitator dispenses ice at 5 kgs. per minute.
- Long life stainless steel construction.
- Inbuilt, removable, easily cleaned, reusable air filters.
- Warranty: 2 year parts and labour
Technical specifications
- Max Storage Capacity: Approx. 90kg
- Dispensing gear motor: 60W
- Width Depth Height: 762mm x 684mm x 1346mm (Includes 152mm legs)
- Weight Net - 57kg
- AC Supply Voltage: 1 PHASE 240V 50Hz / 10AMP Plug
- Amperage: Rated: 1.4A
- Production: Select Modular Head unit KMD-201AA, KMD-270AA or KM-660MAJ-E & Top Kit (Sold Separately)
Operating conditions
- Ambient Temp.: 7-38°C
- Voltage Range: Voltage Range:104 -132V
For more information: To view ice sizes, water inlet/drainage diagram, etc., please download the spec sheet available in the "Downloads" Tab.
Product details
- Brand: Hoshizaki
- Model / SKU: DB-200H-Hotel
- Product type: Ice Dispenser
Before ordering: Confirm production capacity, storage requirements, water supply, drainage, ventilation, electrical supply and installation clearances for your site. Contact ICE Group Hospitality for product selection, delivery, installation and service support.
