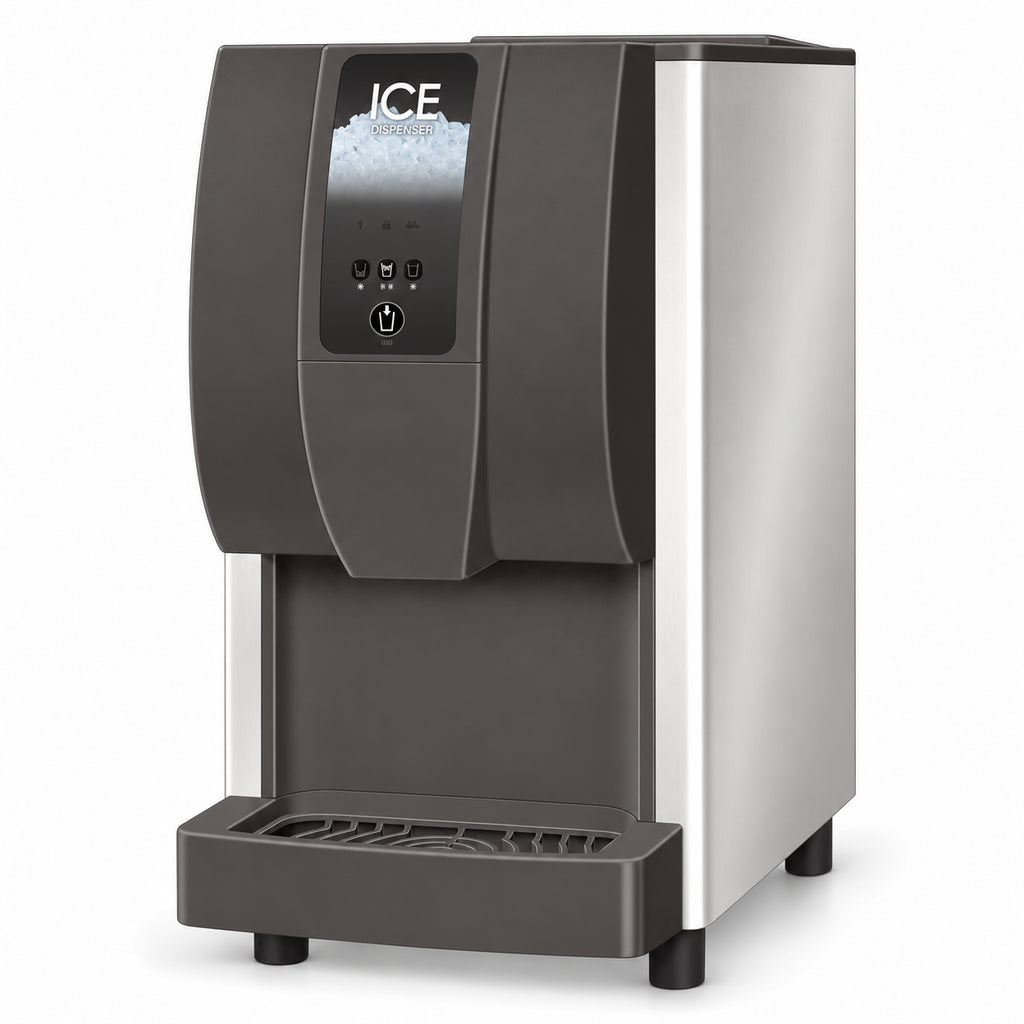

Hoshizaki DCM-60KE-P-HC(HL) 50kg Ice & Water Dispenser – Self Contained

The Hoshizaki DCM-60KE-P-HC(HL) is a self-contained cubelet ice and water dispenser rated at approximately 50kg per 24 hours at 21°C air / 15°C water. Push-button ice and water dispensing suits shared hospitality refreshment areas.

Before installation: Confirm water supply, drainage, ventilation and electrical requirements against the manufacturer’s documentation.

Key features

• Cubelet ice production with air-cooled operation.
• Stainless steel (Side, Rear), ABS molding (Front, Top, Drain pan)
• 1 PHASE 220-240V 50Hz/ 10 AMP Plug

Technical specifications

Production varies with air and water temperature. Maximum bin capacity and the automatic bin-control setting are different measurements; allow for peak service demand when sizing your machine.

Installation and water filtration

Provide a suitable potable water connection, compliant drainage, a dedicated electrical outlet and the clearances specified by Hoshizaki. A compatible water filter is recommended to help limit scale and sediment. Filters, plumbing and installation are separate unless expressly included in your quotation.

Ambient Temp.: 5-40°C Water Supply Temp.: 5-35°C Water Supply Pressure: 0.05-0.78MPa (0.5-8bar) Voltage Range: Rated Voltage ±6%

Warranty and support

Hoshizaki provides a two-year parts and labour warranty on the unit and five-year parts cover on the compressor and air-cooled condenser. Manufacturer terms, installation and maintenance requirements apply. View Hoshizaki warranty terms and registration.

Downloads

Secondary image shows an illustrative setting. Surrounding equipment, benches and display plinths are not included. Download the DCM-60KE-P-HC(HL) specification sheet (PDF). Manufacturer product information and manuals.

Need help sizing your ice machine?

Use our Ice Machine Size Finder to estimate demand, then contact ICE Group to confirm production, storage and installation requirements for your venue.

Compare Hoshizaki ice machines and storage options. For a different production size, ask about the capacity and ice type that best match your service.

Finance and delivery

Explore equipment finance options, subject to provider eligibility and approval. Contact ICE Group for current stock, delivery timing, freight and installation options before ordering. See our delivery policy.
