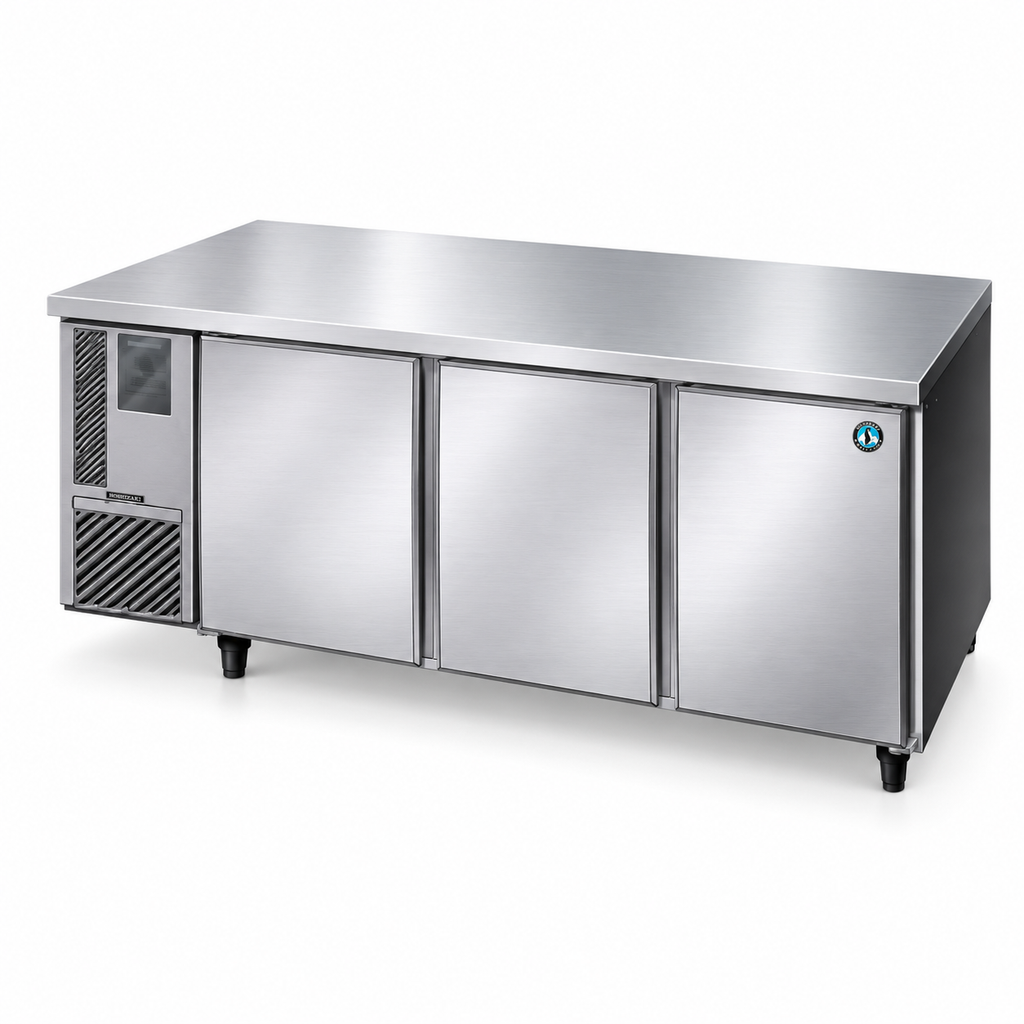

Hoshizaki FT-186MA-A 401L Underbench Freezer

Underbench Freezer

The Hoshizaki FT-186MA-A is a commercial underbench freezer with a manufacturer-stated capacity of 401L.

Add to wishlist
$4,119.59incl. GST Save $2,040.41
$3,745.08 ex. GST RRP $6,160.00
rent-try-buy
3,745.08 ex GST /Wk*
Based on 12mth Contract
  • Category : All, Bakeries & Food Production, Cafés & Coffee Shops, Commercial Freezers, Commercial Refrigeration, Discounted Sale Items, Healthcare & Aged Care, Hoshizaki, Hotels, Pubs & Clubs, Refrigeration & Ice Machines, Restaurants & Takeaways, Schools & Education, Undercounter Refrigeration

The Hoshizaki FT-186MA-A is a commercial underbench freezer with a manufacturer-stated capacity of 401L.

Designed to place refrigerated storage beneath a work area. Compare external dimensions, door clearance and ambient conditions with your kitchen layout.

Key features

  • Storage configuration: 401L
  • Manufacturer temperature reference: Microprocessor adjustable from -23°C to -7°C
  • External construction: Stainless Steel, Galvanized Steel (Rear, Bottom) ABS plastic (Top & Bottom on door)
  • Electrical supply: 1 Phase 220-240V 50Hz/10Amp Plug

Technical specifications

Model / MPN FT-186MA-A
Supplier item number 97000265
Interior Stainless Steel, ABS plastic(doors)
Exterior Stainless Steel, Galvanized Steel (Rear, Bottom) ABS plastic (Top & Bottom on door)
Max Storage Capacity 401L
Temperature Control Microprocessor adjustable from -23°C to -7°C
Evaporator Fin & Tube type
Outside Dimensions Width 1,800mm
Outside Dimensions Depth 600mm
Outside Dimensions Height 815mm (Includes 115mm Castors)
Inside Dimensions Width 1,440mm
Inside Dimensions Depth 436mm
Inside Dimensions Height 599mm
Weight Net 93kg
Packed Weight 98kg
Refrigeration System Forced Air Circulation
AC Supply Voltage 1 Phase 220-240V 50Hz/10Amp Plug
Amperage Rated: 2.7A
Refrigerant R404A
Operating Conditions Ambient Temp.: 5-38°C Voltage Range: Rated Voltage ±6%
Electrical consumption 357W, Heater 397W, Defrost 330W

Installation and operation

Confirm ventilation clearances, door or drawer travel, site access and a suitable electrical supply against the model PDF. Optional legs, extra shelves, GN pans, food and installation are separate unless included in your quotation.

Warranty and support

Manufacturer warranty: two years parts and labour, subject to the manufacturer’s terms. View Hoshizaki warranty terms and registration.

Downloads

Download the FT-186MA-A specification sheet (PDF). Manufacturer model information and manuals.
