Overview

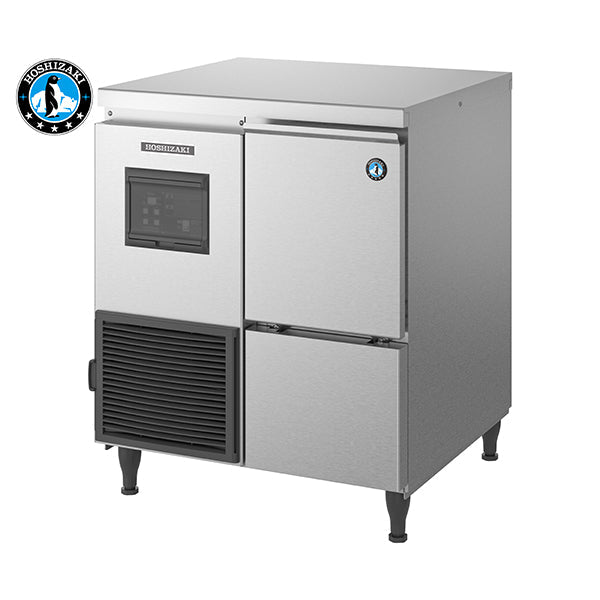

The Hoshizaki FM-150KE-N is a commercial nugget ice maker producing up to 120kg per 24 hours for hospitality, healthcare, food display and beverage applications.
PURE & COOL NUGGET ICE MAKER
This self-contained ice maker produces nugget ice, which is often used for producing display of fish, fresh food and bottled beverages. In the medical field, flake ice is also used for organ transportation. Utilizing the most efficient ice making process due to the unique auger system, the water consumption is equal to the ice production.
Required water filter
Water Filter Kit 80-250 - 81000116-87000105 (Sold Separately)
Key features
- "Freeze Burn” is no longer an issue when displaying fresh fish or produce.
- Carbon auger bearings have a longer life expectancy than roller bearing, reducing maintenance costs.
- One piece bin moulding – rounded corners for hygiene and ease of cleaning.
- Automatic flush function, helps keep the ice making system clean.
- Integrated door handle for ease use and hygiene.
- Controller board with Operational Status display assists in troubleshooting.
- Due to the auger system, water consumption is equal to ice production.
- The Unique Ice Production System
- Warranty: 2 year parts & labour on entire unit, 5 year (parts only) on compressor & air cooled condenser coil.
Technical specifications
- Max Storage Capacity: Approx. 32kg
- Width Depth Height: 640mm x 600mm x 803mm (Includes 70mm-110mm Legs)
- Weight Net - 71kg
- AC Supply Voltage: 1 PHASE 220-240V 50Hz / 10 AMP Plug
- Amperage: Running: 5.0A, Starting: 20A
- Refrigerant Charge: R134a / 200g
Operating conditions
- Ambient Temp.: 5-40°C
- Water Supply Temp.: 5-35°C
- Water Supply Pressure: 0.05-0.8MPa
- Voltage Range: Rated Voltage ±10%
For more information: To view ice sizes, water inlet/drainage diagram, etc., please download the spec sheet available in the "Downloads" Tab.
Product details
- Brand: Hoshizaki
- Model / SKU: FM-150KE-N
- Product type: Nugget Ice Maker
Before ordering: Confirm production capacity, storage requirements, water supply, drainage, ventilation, electrical supply and installation clearances for your site. Contact ICE Group Hospitality for product selection, delivery, installation and service support.
Overview
The Hoshizaki FM-150KE-N is a commercial nugget ice maker producing up to 120kg per 24 hours for hospitality, healthcare, food display and beverage applications.
PURE & COOL NUGGET ICE MAKER
This self-contained ice maker produces nugget ice, which is often used for producing display of fish, fresh food and bottled beverages. In the medical field, flake ice is also used for organ transportation. Utilizing the most efficient ice making process due to the unique auger system, the water consumption is equal to the ice production.
Required water filter
Water Filter Kit 80-250 - 81000116-87000105 (Sold Separately)
Key features
- "Freeze Burn” is no longer an issue when displaying fresh fish or produce.
- Carbon auger bearings have a longer life expectancy than roller bearing, reducing maintenance costs.
- One piece bin moulding – rounded corners for hygiene and ease of cleaning.
- Automatic flush function, helps keep the ice making system clean.
- Integrated door handle for ease use and hygiene.
- Controller board with Operational Status display assists in troubleshooting.
- Due to the auger system, water consumption is equal to ice production.
- The Unique Ice Production System
- Warranty: 2 year parts & labour on entire unit, 5 year (parts only) on compressor & air cooled condenser coil.
Technical specifications
- Max Storage Capacity: Approx. 32kg
- Width Depth Height: 640mm x 600mm x 803mm (Includes 70mm-110mm Legs)
- Weight Net - 71kg
- AC Supply Voltage: 1 PHASE 220-240V 50Hz / 10 AMP Plug
- Amperage: Running: 5.0A, Starting: 20A
- Refrigerant Charge: R134a / 200g
Operating conditions
- Ambient Temp.: 5-40°C
- Water Supply Temp.: 5-35°C
- Water Supply Pressure: 0.05-0.8MPa
- Voltage Range: Rated Voltage ±10%
For more information: To view ice sizes, water inlet/drainage diagram, etc., please download the spec sheet available in the "Downloads" Tab.
Product details
- Brand: Hoshizaki
- Model / SKU: FM-150KE-N
- Product type: Nugget Ice Maker
Before ordering: Confirm production capacity, storage requirements, water supply, drainage, ventilation, electrical supply and installation clearances for your site. Contact ICE Group Hospitality for product selection, delivery, installation and service support.
FM-150KE-N Spec Sheet.pdf
