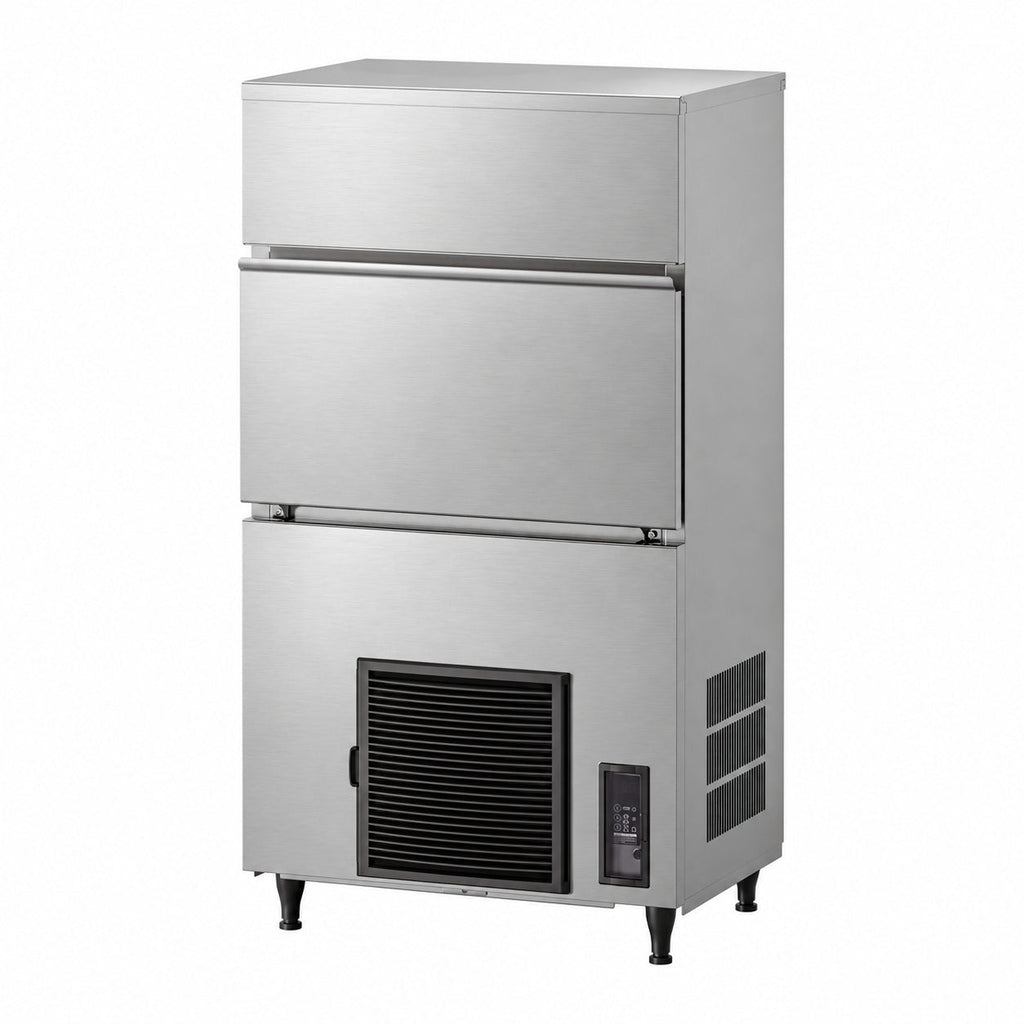

Hoshizaki IM-130PE-23-F 96kg Cube Ice Maker – Self Contained with Drain Pump

The Hoshizaki IM-130PE-23-F is a self-contained cube ice maker rated at approximately 96kg per 24 hours at 21°C air / 15°C water. Cube ice suits everyday beverage service in cafés, bars and commercial hospitality venues.

Drain pump version: This model includes a drain pump. Confirm the permitted drain lift and pipe routing against the installation manual before ordering.

Key features

• Cube ice production with air-cooled operation.
• Stainless steel AISI 441, Galvanized steel (Rear)
• 1 PHASE 220-240V 50Hz/ 10 AMP Plug
• Closed-cell ice making with a variable-speed magnetic DC pump and cleaning notifications.

Technical specifications

Production varies with air and water temperature. Maximum bin capacity and the automatic bin-control setting are different measurements; allow for peak service demand when sizing your machine.

Installation and water filtration

Provide a suitable potable water connection, compliant drainage, a dedicated electrical outlet and the clearances specified by Hoshizaki. A compatible water filter is recommended to help limit scale and sediment. Filters, plumbing and installation are separate unless expressly included in your quotation.

Ambient Temp.: 1-40°C Water Supply Temp.: 5-35°C Water Supply Pressure: 0.07-0.8MPa (0.7 – 8bar) Voltage Range: Rated Voltage ±6%

Warranty and support

Hoshizaki provides a three-year parts and labour warranty on the IM unit, five-year parts and labour cover on the evaporator, and five-year parts cover on the compressor and air-cooled condenser. Manufacturer terms, installation and maintenance requirements apply. View Hoshizaki warranty terms and registration.

Downloads

Secondary image shows an illustrative setting. Surrounding equipment, benches and display plinths are not included. Download the IM-130PE-23-F specification sheet (PDF). Manufacturer product information and manuals.

Need help sizing your ice machine?

Use our Ice Machine Size Finder to estimate demand, then contact ICE Group to confirm production, storage and installation requirements for your venue.

Compare Hoshizaki ice machines and storage options. For a different production size, ask about the capacity and ice type that best match your service.
