Undercounter vs Modular Ice Machines: Which Setup Fits Your Venue?

Posted by: Martin Costanzo
Oct 05, 2026
0 Comments

Short answer: choose a self-contained or undercounter ice machine when compact footprint, integrated storage and moderate production are the priority. Choose modular when the venue needs higher output, larger or separately selected storage, or a system that can be configured around heavy peak demand.

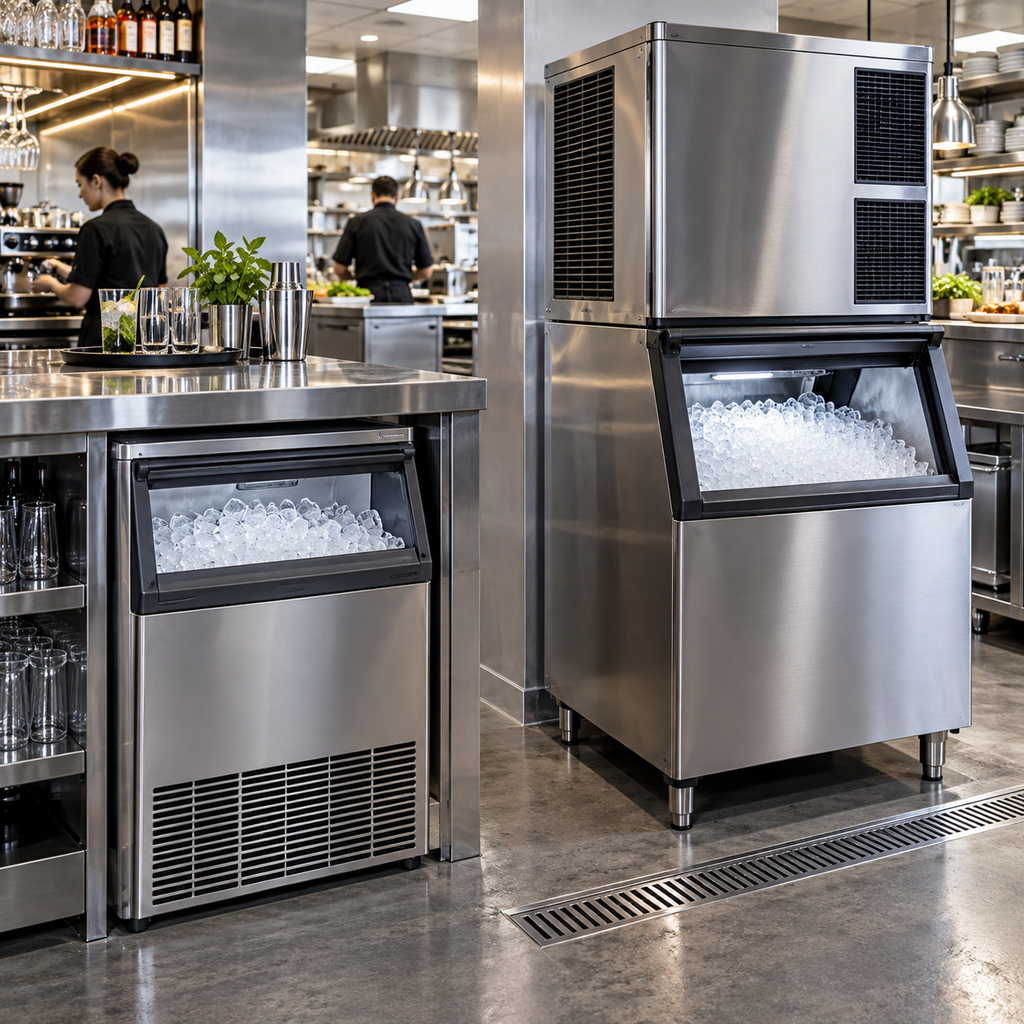

Undercounter and modular ice machines solve different planning problems. One packages production and storage into a compact cabinet; the other separates the ice-making head from the storage bin so the venue can scale output and stored reserve more deliberately.

The right format depends on service pattern, available footprint, required production, storage drawdown and the site's water, drainage, ventilation and electrical services.

Undercounter commercial ice machine integrated into a busy café bar — Self-contained machines are useful where production, storage and footprint need to be combined in one compact service station.

Undercounter vs modular ice machines: quick comparison

Criteria	Self-contained / undercounter	Modular head + separate bin
Footprint	Compact single cabinet	Larger overall system
Storage	Built into the machine	Selected separately
Production range	Generally suited to lower and medium demand	Better suited to higher-volume production
Flexibility	Simple all-in-one specification	More control over head output and bin size
Typical venue	Cafés, restaurants, bars and secondary service points	Hotels, clubs, functions, high-volume bars and large operations

When should you choose an undercounter ice machine?

Choose undercounter when the venue needs a compact all-in-one ice source close to the point of service. This format is particularly useful behind a café or bar where staff need quick access to ice and floor or bench space is tightly controlled.

The key risk is sizing only by cabinet width. A unit may physically fit beneath a bench but still need ventilation clearance, drain access and service space. Production and integrated storage also need to match the venue's busiest period, not merely the average day.

When should you choose a modular ice machine?

Choose modular when production volume and storage flexibility are more important than a compact cabinet. The ice-making head sits above or with a compatible storage bin, allowing the system to be configured around larger daily output and a larger stored reserve.

Modular systems become especially useful where one machine supports multiple bars, function spaces or heavy beverage service. The extra flexibility also means more specification work: the head, bin and any top kit or adapter must be compatible.

High-output modular commercial ice machine with separate storage bin in a busy venue — Modular systems separate production from storage, making them easier to scale around high-volume service.

Why production and storage should be sized separately

A machine can make enough ice over 24 hours and still run short during service if the bin is too small. Production capacity tells you replenishment; storage capacity tells you how much finished ice is ready when the rush starts.

Bars and clubs can draw a large share of daily demand over a short evening period. Hotels and function venues may need a substantial stored reserve before an event begins. A café may need less storage but still benefit from enough reserve to protect the morning and lunch peaks.

The ICE Group Ice Machine Size Finder estimates a starting production class. Storage should then be reviewed against peak draw.

What site checks change the decision?

installed dimensions rather than nominal cabinet width;
manufacturer ventilation clearances;
potable water supply and pressure requirements;
drain location and fall;
electrical connection and circuit capacity;
water treatment requirements;
cleaning and technical service access.

Technician measuring commercial ice machine installation space with venue manager — Measure the installed space and service requirements before the machine is ordered.

Examples from the ICE Group range

For a compact self-contained starting point, examples include the Hoshizaki IM-30CNE-25 self-contained cube ice maker and the Bromic 47 kg self-contained hollow-cube model.

At the larger end, modular examples include the Hoshizaki IM-240ANE-28 modular cube ice maker and the Bromic IM0485HDM modular half-dice head. Modular heads require compatible storage and installation components to be confirmed separately.

Which format should your venue choose?

If this describes the venue...	Start by comparing...
Compact café or bar station with moderate demand	Self-contained / undercounter
Restaurant needing an independent ice source close to service	Self-contained, then check peak reserve
High-volume bar or club	Modular
Hotel or function venue with concentrated peaks	Modular with separately sized storage
Venue with uncertain demand	Start with the Size Finder, then compare format

Choose capacity before cabinet format

Estimate the production class, review the broader buying guide, then compare current commercial machines.

Use the Size Finder →Read the buying guide →Browse ice machines →

Frequently asked questions

Does a modular ice machine include the storage bin?

Not necessarily. Many modular products are sold as head-only units, so the compatible bin, top kit and installation requirements need to be specified separately.

Can an undercounter machine handle a busy bar?

It can if its production and storage match the venue's peak demand. High-volume bars often move toward modular equipment because it provides greater production and storage flexibility.

Which format is easier to install?

A self-contained unit is often simpler as one appliance, but either format still requires the correct water, drainage, ventilation, electrical and service clearances.

Reviewed 5 October 2026 · Martin Costanzo · ICE Group Hospitality
